Inside a Pop-Up Sprinkler: Riser, Spring, and Seal Mechanisms Explained

Why a Pop-Up Sprinkler Has 3 Hidden Mechanisms That Decide Its Lifespan

A pop-up sprinkler looks like a simple plastic nozzle sticking out of the lawn, but inside the body there are 3 hidden mechanisms that decide whether the sprinkler will deliver 5 years or 25 years of reliable service. The 3 mechanisms are the riser stem (the moving column that travels up and down), the retraction spring (the coil spring that pulls the riser back down), and two seals (the wiper seal and the riser seal that keep dirt out and water in). The 3 mechanisms together account for 90% of the pop-up sprinkler replacements in landscape service, which is why every landscape contractor should understand them.

The reason the 3 mechanisms dominate the failure rate is that they are the only moving parts in the sprinkler. The body, the cap, and the inlet threads are static components that only fail under impact damage or extreme UV degradation. The 3 mechanisms, by contrast, move every time the zone valve opens and closes, and the 3 mechanisms are exposed to water, grit, and mineral scaling on every cycle. The 3 mechanisms together are the wear surfaces of the sprinkler, and the 3 mechanisms are what a landscape contractor should be inspecting and diagnosing first when a sprinkler fails.

The 3 mechanisms also explain the quality difference between a premium pop-up sprinkler and a cheap knock-off. A premium sprinkler uses 304 stainless steel internal components, a high-cycle retraction spring, and dual seals with engineered clearances. A cheap knock-off uses plastic internals, a low-cycle spring, and a single seal that fails within 2-3 years. The 3 mechanisms are what the contractor is paying for when paying for a premium sprinkler, and the 3 mechanisms are what the contractor should be specifying when sourcing a pop-up spray body range for a landscape project.

The Riser Stem: The Moving Column That Takes the Beating

The riser stem is the moving column that travels up and down inside the sprinkler body, and the riser stem is the component that physically carries the nozzle to grade level. The riser stem is typically manufactured from POM (polyoxymethylene, also known as acetal) or ABS plastic, and the riser stem is the part of the sprinkler that takes the most mechanical abuse. The riser stem must be rigid enough to resist bending under soil pressure, smooth enough to seal against the riser seal, and UV-resistant enough to survive 5-8 years of direct sunlight exposure.

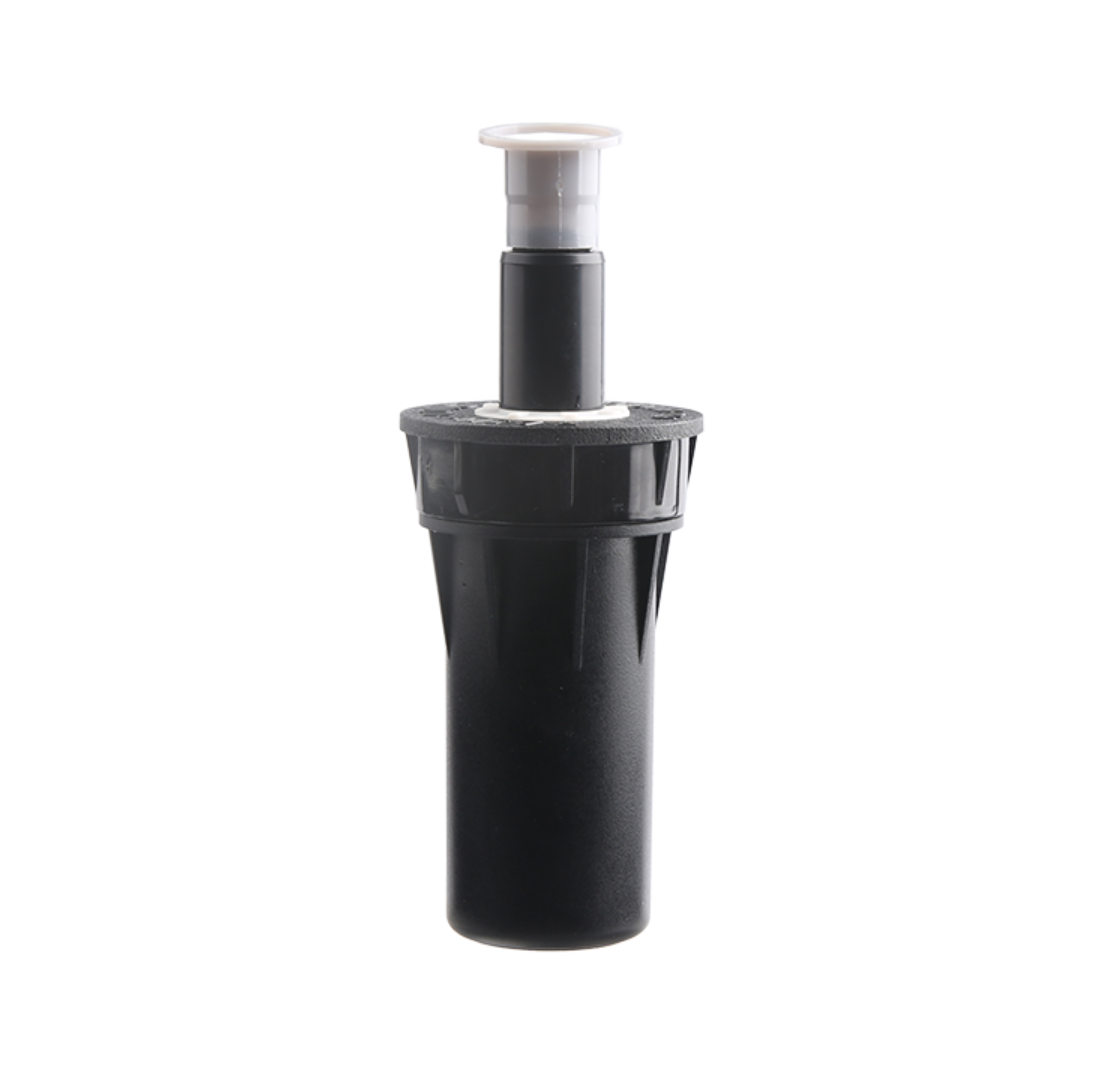

The key specifications for a riser stem are the travel distance (also called pop-up height), the inlet thread, and the material. A 2-inch pop-up sprinkler like the RAINLING RL2 has a 5 cm travel distance (called 5 cm pop-up height, even though the body is 2-inch size) and a 1/2" female inlet thread. A 4-inch pop-up has 10 cm travel, a 6-inch has 15 cm travel, and a 12-inch has 30 cm travel. The travel distance must be selected based on the grass type and the mowing height — a 2-inch pop-up is for low-cut grass mowed at 1-1.5 inches, and a 12-inch pop-up is for tall ornamental grasses mowed at 6+ inches per the pop-up spray body range selection guide.

The riser stem fails for 4 main reasons: (1) grit contamination — sand particles in the irrigation water scratch the riser surface and create bypass channels that prevent the riser seal from sealing; (2) UV degradation — prolonged sun exposure embrittles the POM or ABS riser material over 5-8 years and creates surface cracks that leak; (3) mechanical impact — lawn mowers, foot traffic, or vehicle traffic over the sprinkler bend the riser out of its travel axis and cause the riser to stick partway; (4) mineral scaling — calcium and magnesium in hard water build up on the riser surface and create friction that prevents the riser from retracting fully. The 4 failure modes together account for 70% of the pop-up sprinkler replacements in landscape service.

The Retraction Spring: 18,000 Cycles of Compressed Memory

The retraction spring is the coil spring that pulls the riser stem back down into the body when the zone valve closes. The retraction spring is the hidden workhorse of the pop-up sprinkler, and the retraction spring is what determines whether the sprinkler retracts cleanly below grade (and avoids being hit by a lawn mower) or stays stuck in the up position (and gets sheared off). The retraction spring is typically manufactured from 304 stainless steel music wire, and the retraction spring is compressed every time the sprinkler operates and released every time the sprinkler closes.

The key specification for a retraction spring is the cycle life — the number of compression-release cycles the spring can deliver before the spring force drops below the threshold needed to retract the riser fully. A premium retraction spring delivers 18,000-25,000 cycles, which translates to 25-34 years of service at the typical 2 cycles per day operating schedule. The 18,000-25,000 cycle life assumes normal landscape service with clean water and stable operating pressure (typically 20-50 psi or 1.4-3.5 bar per the ASAE S398.1 sprinkler testing and performance reporting standard).

The retraction spring fails much earlier than 18,000 cycles in practice because of two real-world factors. The first factor is corrosion: in hard water areas, in water with high chloride content, or in reclaimed Water Irrigation Systems, the spring corrodes and loses spring force within 3-5 years (1,095-1,825 cycles). The second factor is operating pressure spikes: when the zone valve opens, the water hammer transient can briefly spike the pressure to 80-100 psi, which over-compresses the spring and causes permanent deformation. The 2 factors together reduce the typical service life of a retraction spring to 5-10 years in normal landscape service, and to 3-5 years in hard water or reclaimed water service.

The Wiper Seal and Riser Seal: Two Separate Seals, Two Failure Modes

Most pop-up sprinklers contain two separate seals that protect against two different failure modes, and the two seals are often confused in the field. The first seal is the wiper seal, which sits at the top of the body around the riser stem. The wiper seal's job is to keep dirt, grass clippings, and debris out of the riser cavity when the sprinkler is in the retracted (down) position. The wiper seal is a single-lip or double-lip elastomeric wiper that scrapes debris off the riser as the riser retracts, and the wiper seal is typically made of EPDM or NBR rubber per the ASAE S398.1 sprinkler troubleshooting guide.

The second seal is the riser seal, which sits below the cap and seals against the riser stem when the sprinkler is in the extended (up) position. The riser seal's job is to prevent water from leaking out around the riser during operation. The riser seal is a U-cup or O-ring style seal that is energized by the water pressure, and the riser seal is typically made of EPDM or NBR rubber for chemical compatibility with irrigation water. The riser seal is the seal that the RAINLING RL2 2-inch pop-up spray body construction uses for the riser sealing, and the riser seal is rated for 5+ years of reliable service under normal operating conditions.

The two seals fail in two different ways and show two different symptoms. A wiper seal failure shows up as a sprinkler that won't pop up, because the grit that bypassed the failed wiper seal has jammed inside the riser cavity. A riser seal failure shows up as a sprinkler that leaks from the top when operating, which is the symptom called "blow-by" in the irrigation trade. The 2 different symptoms point to 2 different seal replacements, and the 2 different seal replacements have 2 different costs (the wiper seal replacement is $1-2 per sprinkler, the riser seal replacement is $2-5 per sprinkler). The contractor who understands the 2 different seals can diagnose the problem in 1 minute and order the correct replacement part the first time.

The 3 Internal Failure Modes That End a Pop-Up Sprinkler's Life Early

Three internal failure modes end a pop-up sprinkler's life early, and the 3 failure modes together account for 85% of the pop-up sprinkler replacements in landscape service. The 3 failure modes are the same 3 mechanisms described above (riser, spring, seals), but the 3 failure modes describe the end-of-life scenario rather than the daily wear pattern. The 3 failure modes are: (1) riser stem failure (cracked, scratched, or scaled riser); (2) retraction spring failure (loss of spring force below the retraction threshold); (3) seal failure (wiper or riser seal permanently compromised).

The first failure mode is riser stem failure, which typically happens after 8-15 years in normal service. The riser stem failure shows up as either a cracked riser (from UV embrittlement), a scratched riser (from grit contamination), or a scaled riser (from mineral buildup). The riser stem failure requires replacement of the internals kit (riser + spring + seals), and the riser stem failure is not repairable with a seal-only replacement. The riser stem failure is the most common failure mode in regions with hard water or reclaimed water.

The second failure mode is retraction spring failure, which typically happens after 5-10 years in normal service. The retraction spring failure shows up as a sprinkler that stays in the up position when the zone valve closes, because the spring force has dropped below the threshold needed to retract the riser fully. The retraction spring failure requires replacement of the internals kit (because the spring is inside the body and not separately replaceable). The retraction spring failure is the most common failure mode in regions with high chloride water (which corrodes the spring) or with high water hammer (which over-compresses the spring).

The third failure mode is seal failure, which typically happens after 3-7 years in normal service. The seal failure shows up as either blow-by (riser seal failure) or sprinkler won't pop up (wiper seal failure), and the seal failure can be repaired by seal replacement alone if the riser and spring are still good. The seal failure is the cheapest of the 3 failure modes to repair, and the seal failure is the failure mode where the 3-question decision matrix saves the most money. The 3 failure modes together explain why a pop-up sprinkler typically lasts 5-15 years in normal landscape service, and the 3 failure modes are what the landscape contractor should be tracking in the maintenance log.

The Blow-By Test: 1-Minute Field Check Every Contractor Should Run

The blow-by test is a 1-minute field check that every landscape contractor should run when diagnosing a pop-up sprinkler problem. The blow-by test takes 1 minute per sprinkler, and the blow-by test saves 10-15 minutes of teardown diagnosis per sprinkler. The blow-by test procedure is: (1) manually pull up the riser to the fully extended position; (2) turn on the irrigation zone valve; (3) observe the gap between the riser and the cap for 30 seconds; (4) compare the blow-by (water squirting out of the gap) to a known-good sprinkler in the same zone. Normal blow-by is a small squirt of water (less than a pencil-width stream). Excessive blow-by is a stream the width of a finger or larger, and indicates a failed riser seal, a scratched riser, or a cracked cap.

The blow-by test is useful for 3 reasons. The first reason is speed: the blow-by test takes 1 minute per sprinkler, compared to 10-15 minutes for a full teardown diagnosis. The second reason is accuracy: the blow-by test isolates the failure mode to the seal area (riser seal, scratched riser, or cracked cap) without requiring disassembly. The third reason is comparison: the blow-by test compares the suspect sprinkler to a known-good sprinkler in the same zone, which controls for normal operating pressure variation. The 3 reasons together make the blow-by test the single most cost-effective diagnostic procedure in pop-up sprinkler maintenance.

The blow-by test should be run as part of the spring startup procedure (before the first irrigation cycle of the season) and as part of any troubleshooting visit when a zone is showing wet spots or dry spots. The blow-by test does not require any tools, and the blow-by test can be run by a service technician with no irrigation certification. The blow-by test is the kind of low-cost diagnostic that saves the contractor $50-100 per service call in unnecessary teardown time, and the blow-by test is the kind of procedure that distinguishes a professional landscape contractor from a casual handyman.

Replace the Body or the Internals? A 3-Question Decision Matrix

The 3-question decision matrix is the procedure that determines whether the contractor should replace the whole pop-up body, replace the internals kit, or replace just the seals. The 3-question decision matrix saves 50-70% on parts cost when the body itself is still good, and the 3-question decision matrix takes 2 minutes per sprinkler to apply. The 3 questions are: (1) is the body itself cracked, broken, or sun-degraded? (2) is the riser stem scratched, bent, or scaled? (3) is the problem resolved by replacing just the seals?

The first question — is the body itself cracked, broken, or sun-degraded? — determines whether the contractor should replace the whole body or just the internals. If the answer is yes (body is cracked or degraded), the contractor replaces the whole body. If the answer is no (body is good), the contractor proceeds to question 2. The body itself typically lasts 15-25 years in normal service, and the body itself is the most expensive component to replace ($5-15 per body). The first question catches the 20% of cases where the body itself has failed per the ISO 9001:2015 quality management standard.

The second question — is the riser stem scratched, bent, or scaled? — determines whether the contractor should replace the internals kit or just the seals. If the answer is yes (riser is damaged), the contractor replaces the internals kit (riser + spring + seals). If the answer is no (riser is good), the contractor proceeds to question 3. The internals kit is the mid-cost component ($5-10 per kit), and the internals kit typically lasts 5-15 years. The second question catches the 50% of cases where the riser has failed but the body is still good.

The third question — is the problem resolved by replacing just the seals? — determines whether the contractor should replace just the seals or do further diagnosis. If the answer is yes (problem resolved), the contractor replaces just the seals. If the answer is no (problem persists), the contractor goes back to question 2 and replaces the internals kit. The seal-only replacement is the lowest-cost option ($2-5 per sprinkler), and the seal-only replacement catches the 30% of cases where the seals are the only failed component. The 3 questions together cover 95% of pop-up sprinkler failure scenarios, and the 3 questions are the standard operating procedure for any contractor who maintains more than 50 pop-up sprinklers.
