Low Head Drainage After Shutoff: Causes, Costs, and Check-Valve Fixes

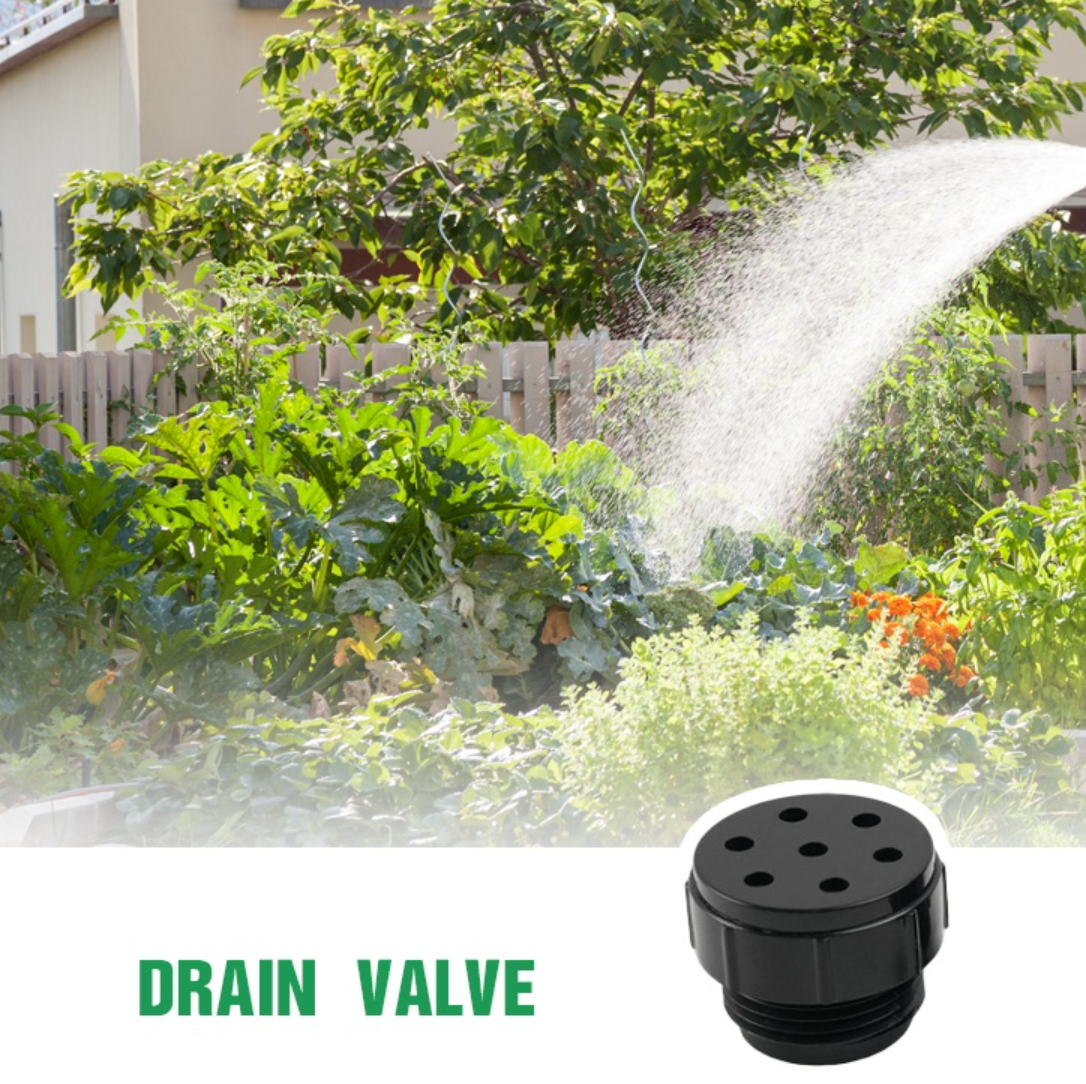

Rainling VX75 auto drain valve — engineered for low-point relief in Landscape Irrigation laterals. Opens at 0.2 bar, closes at 0.4 bar, 1/2 in. MPT connection, engineering plastic body. Source: Rainling auto drain valve product page.

1. What Low Head Drainage Is and Why It Happens After Shutoff

Low head drainage is one of the most common — and most underdiagnosed — problems in residential and commercial landscape irrigation. The visible symptom is familiar: a zone valve closes, the controller moves on to the next station, and one or two of the lowest sprinkler heads on the just-shut-off line continue to drip, weep, or even run at low pressure for several minutes before the flow finally stops. The puddle that forms at the base of the lowest head is a tell, but the deeper issue is what the puddle represents: gallons of treated water that left the municipal supply, traveled through the lateral pipe, and exited the system without ever reaching a plant.

The physics behind low head drainage is straightforward. When the zone valve closes, the water column in the lateral pipe is no longer under pressure, and gravity takes over. If the lowest head on the line is positioned below the elevation of the water in the pipe, water flows downhill until the column equalizes. Hunter Industries and the Irrigation Association describe this exactly: low head drainage is "where the lowest heads on the line weep the water in the pipe after that valve has shut down." Rainling's parts & accessories catalog includes three categories of fix components, and choosing the right one is what separates a quick patch from a permanent repair.

There are three drivers, and most landscape systems have at least two of them operating at once:

• Elevation differential on the lateral: any zone that has more than 4–6 feet of elevation change from the valve to the lowest head will have low head drainage when the valve closes. The taller the elevation differential, the larger the volume of water that drains out before the column equalizes.
• Slow-closing or leaking zone valve: a zone valve that doesn't fully close (because of debris in the diaphragm, a worn solenoid, or a cracked bonnet) keeps the lateral under partial pressure even after the controller signals "off." A 1/32-inch leak at the valve can keep the lateral above weeping pressure for hours.
• No check valve on the sprinkler body: most older Spray Heads and rotors don't ship with an internal check valve. Without the check, the head acts as an open pathway for the column to drain.

The fix for each driver is different, and a complete low head drainage repair usually requires addressing all three rather than just one. The remaining sections of this article walk through what each fix costs, what each one fixes, and how to size the right component for a given zone.

2. The Real Cost of Low Head Drainage: Water, Pressure, and Plant Damage

The water cost is the first number most landscape contractors and property managers want to quantify. EPA WaterSense's outdoor water efficiency guidance provides a useful benchmark: "A leak about as small as the tip of a ballpoint pen (or 1/32nd of an inch) can waste about 6,300 gallons of water per month." Low head drainage is operating on a comparable scale — a typical 6-head zone with 1-inch lateral piping can hold 1.5 to 3 gallons between the valve and the heads, and that water exits the system at the lowest head every time the zone cycles.

The arithmetic for a 6-station residential system running daily during the irrigation season:

For commercial systems with 20–80 zones, the per-system waste scales 3–13x. The EPA WaterSense "Sprinkler Spruce-Up" checklist identifies low head drainage as a leading cause of pool-and-puddle conditions that signal underground leaks.

Beyond water cost, low head drainage causes pressure instability (the next zone starts with depleted pressure, leading to uneven spray patterns for 30–60 seconds) and plant damage (root rot or turf fungus from pooling at the lowest head). Both hidden costs often exceed the water cost itself.

3. Check Valve vs Anti-Drain Valve vs Auto Drain Valve: What's the Difference?

The three fix components most landscape professionals encounter look similar at a glance — all are small in-line valves — but they are designed for different installation positions and different elevation drops. Choosing the wrong one is the most common cause of "we installed a check valve and it didn't fix the problem" complaints.

The first two (check valve and anti-drain valve) are hold-back devices — they prevent water in the lateral from draining out the heads when the zone valve closes. The third (auto drain valve) is a relief device — it allows water to drain out of the lateral at a controlled low point, which protects the system from freeze damage and reduces the total water volume in the pipe that can weep out after shutoff.

The selection rule of thumb that landscape installers use is: elevation drop up to 8 ft → check valve on the body; 8–14 ft drop → anti-drain valve; below-grade manifold or pump-fed systems → auto drain valve at the low point. Rain Bird's check valve product documentation states that a properly specified check valve can "hold back anywhere from 8 to 14 feet of water" depending on the model. The 0.433 psi per foot of elevation head is the engineering constant behind the rule of thumb — to hold back 8 ft, the check valve must close against 8 × 0.433 = 3.46 psi, and to hold back 14 ft it must close against 6.06 psi.

4. Where to Install Check Valves: Pop-Up Bodies, Riser Pipes, and Valve Boxes

Where the check valve is installed matters as much as which one is specified. The three common installation positions solve different problems and have different failure modes.

Position 1: Inside the sprinkler body (integral check valve). The check valve seats against the riser when the zone valve closes, and the head does not drain. This is the cleanest installation for new sprinkler bodies — many Hunter Pro-Spray and Rain Bird SAM bodies ship with the check valve already installed. For retrofit on older heads without an integral check valve, a field-installable check valve kit (e.g., Hunter 437400) drops into the body without disturbing the lateral connection. The Hunter drain check valve installation guide walks through the steps in detail.

Position 2: On the riser pipe, between the lateral and the body. This is the position for anti-drain valves, which are typically installed on the riser just below the sprinkler body. The advantage is that the check valve can be replaced without disturbing the body or the nozzle. The disadvantage is that the riser has to be cut and re-threaded, which is a more involved installation than a body-internal check valve. This position is most common on sloped residential zones where the elevation differential is in the 8–14 ft range.

Position 3: At the pipe low point, end of the lateral. This is the position for auto drain valves. The Rainling VX75 auto drain valve is designed for vertical installation at the lowest point of a lateral. The valve is Normally closed; when pressure drops to 0.2 bar (when the zone valve closes), the valve opens and drains the lateral; when pressure rises to 0.4 bar (when the zone valve opens on the next cycle), the valve closes and the lateral repressurizes. The 3.0 cm diameter × 2.5 cm height body and 1/2 in. MPT connection fit standard landscape irrigation fittings.

The practical sequence: start at the lowest head and work back. If the lowest head weeps, install a body-internal check valve. If weeping continues, the elevation differential is too large — install an anti-drain valve on the riser. If weeping still continues, install an auto drain valve at the lateral low point.

5. Sizing Check Valves: Pressure Ratings and Elevation Drops

Selecting the right check valve is a three-variable problem: the elevation drop on the lateral (in feet), the static pressure on the lateral (in psi), and the maximum flow rate through the head (in gallons per minute). All three must be in the operating range of the selected check valve, or the valve will either fail to seal (elevation drop too high) or fail to open (static pressure too low).

The conversion between elevation drop and required sealing pressure is the engineering constant every landscape installer should know: 1 ft of water column = 0.433 psi. This is the same constant that the Rain Bird check valve product documentation uses to express hold-back capacity in feet. For a 6 ft elevation drop, the check valve must seal against 6 × 0.433 = 2.6 psi. For a 14 ft drop, it must seal against 6.06 psi. Most body-internal check valves seal in the 2–4 psi range (which covers up to 9 ft of drop), and most riser-mounted anti-drain valves seal in the 4–6 psi range (which covers 9–14 ft of drop).

The static pressure on the lateral is the second variable. Most residential landscape laterals operate in the 30–50 psi range, which is well above any check valve's sealing requirement. The exception is pump-fed systems or systems with pressure-regulating devices, where static pressure at the lowest head may be only 5–10 psi. In that case, the sealing pressure of the check valve must be below the available static pressure or the valve will not open during the next cycle.

The flow rate is the third variable, and it is the one most often missed. A check valve rated for "hold back 10 ft" at 0.5 GPM may not hold back the same 10 ft at 4 GPM, because the higher flow creates additional pressure loss across the valve. The check valve specifications should include a flow-vs-pressure-loss curve, and the installer should verify that the valve's pressure loss at the design flow rate does not exceed the available pressure margin. For the Rainling VX75 auto drain valve, the 0.23 m³/h maximum flow (approximately 1.0 GPM) and the 8.5 bar maximum pressure rating (123 psi) make it suitable for residential and light commercial lateral low-point applications.

6. Five Quick Diagnostics to Confirm Low Head Drainage

Before ordering any check valves, run a five-step diagnostic on the affected zone to confirm the problem is low head drainage and not something else (a leaking zone valve, a cracked lateral pipe, or a stuck solenoid). These five steps take about 10 minutes per zone with no special tools beyond a smartphone stopwatch.

1. Step 1: Watch the lowest head after shutoff. Start the zone for 60 seconds, then shut off at the controller. If the lowest head weeps for 30 seconds to several minutes, low head drainage is the likely cause.
2. Step 2: Check the next-lowest head. If the next-lowest head also weeps, the elevation differential is large enough that a body-internal check valve may not be sufficient — an anti-drain valve or auto drain valve is more appropriate.
3. Step 3: Confirm the zone valve is closing fully. With the controller in the OFF position, manually open the zone valve's bleed screw slightly. If water continues to flow, the zone valve is leaking. A leaking zone valve is a separate repair; the check valve won't fix the underlying pressure problem.
4. Step 4: Look for pooling water at the lowest head. Persistent pooling at the base of the lowest head, even in dry weather, is the visible evidence of low head drainage. The EPA WaterSense checklist identifies "areas of the landscape with water pooling on the surface" as a primary sign of irrigation leaks.
5. Step 5: Measure the elevation differential. Use a string level or smartphone level app. Drops above 4 ft cause low head drainage; drops above 8 ft typically need more than a body-internal check valve.

If all five steps point to low head drainage as the cause, the fix is a check valve, anti-drain valve, or auto drain valve at the appropriate position. If any step points to a different cause (a leaking zone valve, a cracked lateral, a stuck solenoid), fix that underlying cause first — a check valve won't fix a broken lateral pipe.

7. Replacement vs Repair: When a Check-Valve Retrofit Pays Back in One Season

The decision to retrofit a zone with a check valve comes down to a payback calculation: how many zones are affected, how much water is the system wasting, and what is the per-zone cost of the check valve or auto drain valve. For residential systems, the payback is usually within one irrigation season. For commercial systems, the payback is usually within the first quarter of operation.

For a residential retrofit using body-internal check valves (Hunter 437400 or equivalent), the per-zone cost is approximately $4–6 per head for the check valve, plus 10–15 minutes of installation labor per head. For a 6-head zone, the total per-zone cost is $24–36 plus 1–1.5 hours of labor. Against the worst-case seasonal waste of $138 per zone (from the table in Section 2), the payback is roughly 6–9 months. For a commercial system with 20–80 zones, the waste savings scale 3–13x, and the payback is typically within 1–3 months.

For zones with elevation drops above 8 ft, an anti-drain valve or the Rainling VX75 auto drain valve (0.2 bar opening, 0.4 bar closing, 1/2 in. MPT) is required. The maintenance-free design does not require seasonal inspection.

The repair-versus-replace question is more relevant for older sprinkler bodies that are due for replacement anyway. If a 10-year-old spray body is showing low head drainage symptoms, the more durable long-term solution is to replace the body with a new model that has an integral check valve, rather than retrofitting a check valve into a body that will need replacement in another 2–3 years. The labor cost is the same, and the result is a 15-year service life instead of 3.

8. Working with Rainling: How to Get a Drainage Fix Recommendation for Your System

As Product Manager at Rainling, I work with landscape contractors, property maintenance teams, and OEM partners specifying check valves, anti-drain valves, and auto drain valves for new installations and retrofits. The VX75 is one of several components in the parts and accessories line.

To get a recommendation for your system, prepare the following before reaching out to our team:

• Total zones in the system (residential typically 4–10, commercial 20–80+)
• Number of zones with visible low head drainage symptoms
• Elevation differential on the affected zones (in feet or meters)
• Static pressure at the zone valve (in psi or bar)
• Flow rate at the affected heads (in GPM or m³/h)
• Thread type on the existing risers (1/2 in. MPT, 3/4 in. MPT, or metric equivalent)

If you have not yet measured these inputs, the diagnostic in Section 6 walks through the steps. With the inputs, our team can recommend the right combination of check valve, anti-drain valve, or auto drain valve for each zone, and provide a quote that includes the per-zone component cost and the labor estimate. For OEM partners and large commercial projects, custom thread and pressure specifications are available on request.
