Solenoid Valves with Rain Sensor Integration for Smart Irrigation: How Automated Zone Control Reduces Water Waste in Commercial Landscape Projects

Why Solenoid Valves Are the Backbone of Modern Smart Irrigation Systems

Commercial landscape irrigation has evolved significantly over the past two decades, moving from rudimentary timer-based watering schedules to sophisticated automated systems that respond dynamically to environmental conditions. At the center of this transformation sits a component that rarely receives the attention it deserves: the solenoid valve. These electromechanical devices serve as the gatekeepers of water flow in multi-zone irrigation networks, opening and closing in response to electrical signals from a central controller. Without Reliable solenoid valves, even the most advanced smart irrigation platform cannot deliver water precisely where and when it is needed. For property managers and irrigation contractors, understanding solenoid valve technology is essential for designing systems that conserve water while maintaining healthy landscapes—a goal championed by theEPA WaterSense program and the Irrigation Association.

A solenoid valve operates on a straightforward principle. When an electrical current passes through the coil of the solenoid, it generates a magnetic field that actuates a plunger or diaphragm, thereby opening the valve and allowing water to flow through the pipeline. When the current is removed, a spring mechanism returns the valve to its default closed position. This binary open-close functionality makes solenoid valves ideal for zone-based irrigation, where different sections of a landscape are watered independently according to their unique soil types, plant requirements, and sun exposure profiles. Modern solenoid valves are available in sizes ranging from three-quarter-inch residential models to two-inch commercial units for large-scale installations.

The integration of solenoid valves into a broader smart irrigation ecosystem is where the real value emerges. When connected to a programmable controller and paired with environmental sensors, solenoid valves become intelligent endpoints. The controller receives data from soil moisture sensors, weather stations, and rain sensors, then determines which valves to activate and for how long. This automation eliminates the guesswork and inefficiency of manual or timer-only systems. For B2B buyers sourcing components for Commercial Irrigation projects, selecting solenoid valves that are compatible with a wide range of controllers and sensor technologies is a critical procurement decision that directly impacts long-term operational efficiency and water conservation outcomes.

How Rain Sensors Transform Irrigation Efficiency and Prevent Overwatering

Rain sensors represent one of the most cost-effective additions to any commercial Irrigation System, yet they remain underutilized in many landscape management operations. A rain sensor, typically mounted in an open area to detect precipitation, communicates with the irrigation controller to suspend watering cycles when sufficient rainfall is detected. The sensor measures moisture levels on a hygroscopic disk or uses a tipping-bucket mechanism to count rainfall accumulation. Once the threshold is reached, the sensor signals the controller, which prevents the solenoid valves from opening during the next scheduled cycle. This prevents the wasteful and harmful practice of irrigating a landscape that has already received adequate natural moisture.

The consequences of overwatering extend far beyond simple water waste. In commercial landscape settings, excessive moisture leads to shallow root development, fungal diseases, soil compaction, and nutrient leaking. Overwatered turf becomes dependent on frequent shallow irrigation and loses deep root resilience. Ornamental plantings suffer similarly, with root rot becoming chronic where schedules do not account for natural rainfall. By incorporating rain sensors into the system architecture, property managers can avoid these issues entirely, maintaining healthier landscapes while simultaneously reducing their water consumption and associated utility costs.

For commercial landscape projects, the return on investment from rain sensor installation is both immediate and measurable. A single rain sensor connected to an irrigation controller managing multiple solenoid valves across dozens of zones can prevent thousands of gallons of unnecessary water application per season. The cost of a quality rain sensor is minimal compared to the water savings it generates over a single growing season, let alone over the multi-year lifespan of a commercial irrigation installation. When sourcing Rainling irrigation products, including Rain Sensor units alongside Solenoid Valves, Controllers, and other system components ensures that every installation is equipped with the environmental awareness needed to operate at peak efficiency from day one.

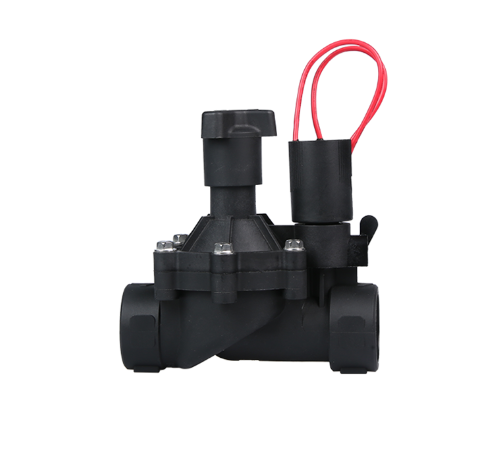

Rainling solenoid valve integrated with rain sensor for automated zone control in commercial irrigation systems

Automated Zone Control: Designing Multi-Zone Systems with Solenoid Valves

Effective commercial landscape irrigation depends on the principle of zone control, which divides a property into distinct areas that are watered independently based on their specific requirements. Each zone is governed by one or more solenoid valves that receive activation signals from the central controller. A multi-zone system design begins with a site analysis considering soil type, slope, sun exposure, plant species, and available water pressure. Zones group plants with similar water needs, allowing the controller to deliver precise volumes without overwatering one section to satisfy another. This granular control is what makes modern smart irrigation systems vastly more efficient than older single-zone or manual approaches. Advances in drip irrigation technology from innovators such as Netafim have further expanded the precision available to landscape designers.

The solenoid valve selection for each zone must account for several technical parameters. Flow rate capacity must match the combined output of all sprinkler heads or drip emitters within the zone. Operating pressure must remain within the valve's rated specifications to ensure reliable opening and closing. Electrical compatibility with the controller is essential, as most commercial irrigation controllers provide 24-volt AC signals to activate solenoid valves. Construction materials must suit the water quality and site conditions. Valves in buried valve boxes must resist corrosion, mineral buildup, and underground mechanical stresses. Quality solenoid valves from established manufacturers are engineered to perform reliably under these demanding conditions for years without requiring maintenance or replacement.

When rain sensors are integrated into multi-zone systems, the zone control strategy becomes even more sophisticated. Rather than applying a blanket suspension across all zones when rain is detected, advanced controllers can use sensor data for zone-specific decisions. South-facing zones with sandy soil may still need supplemental irrigation after light rain, while shaded clay-soil zones may not need watering for days. The rain sensor provides the baseline precipitation data that informs these decisions, and the solenoid valves execute the controller's directives with precision. This layered approach to automated zone control represents the current state of the art in commercial landscape irrigation, and it relies on the reliable performance of every component in the system chain.

Technical Specifications and Material Considerations for Commercial Solenoid Valves

Selecting the right solenoid valve for a commercial irrigation application requires a thorough understanding of the technical specifications that govern valve performance. Critical parameters include nominal pipe size, flow coefficient, operating pressure range, response time, and power consumption. Commercial installations typically require one-inch to two-inch valves with flow coefficients that meet high-volume turf and planting demands. The operating pressure range must align with the municipal water supply or pump system delivering water to the irrigation network, with most commercial solenoid valves rated for pressures between 10 and 150 PSI. Response time, which measures how quickly the valve opens or closes after receiving an electrical signal, affects the precision of water delivery and the system's ability to respond to rain sensor interrupts.

Material selection plays a decisive role in solenoid valve longevity and reliability. Valve bodies are typically glass-reinforced nylon or brass. Nylon bodies are lightweight, corrosion-resistant, and cost-effective, making them standard for landscape irrigation. Brass offers superior durability for installations exposed to higher temperatures or aggressive water chemistry. Internal components, including the diaphragm, plunger, and spring, must be manufactured from materials that resist degradation from constant exposure to water, minerals, and UV radiation. High-quality commercial solenoid valves use reinforced rubber diaphragms and stainless steel springs to ensure consistent performance across thousands of open-close cycles over many years of service.

For B2B procurement teams evaluating solenoid valve suppliers, certifications and quality standards provide important benchmarks. Valves that carry NSF/ANSI 61 certification have been tested for material safety in potable water applications. UL listing indicates that the electrical components meet recognized safety standards. ISO 9001 certification of the manufacturing facility demonstrates a commitment to consistent quality management processes. In mechanical and plumbing systems, engineers also reference ASHRAE standards and guidelines for component interoperability and system performance. These certifications are not merely bureaucratic checkboxes; they represent tangible assurances that the valves will perform as specified under real-world operating conditions. When paired with complementary components such as valve boxes, swing joints, and quick-coupling valves from the same manufacturer, system integrators benefit from standardized dimensions, compatible materials, and coordinated warranty coverage that simplifies both installation and long-term maintenance planning.

Integration Architecture: Connecting Rain Sensors, Controllers, and Solenoid Valves

The architecture of a smart irrigation system that integrates rain sensors with solenoid valves and controllers follows a logical hierarchy. At the base level, solenoid valves are installed in valve boxes distributed throughout the landscape, each connected to a lateral water line serving a specific zone. Low-voltage wire runs from each valve back to the central controller, which serves as the brain of the system. The rain sensor is mounted in an unobstructed location, typically on a roof edge, fence post, or dedicated mast, and connected to the controller via a dedicated two-wire circuit. The controller continuously monitors the sensor status and uses this information, along with programmed watering schedules and optional soil moisture data, to make real-time decisions about which valves to activate and for how long.

Wiring is a critical but often overlooked aspect of integration architecture. The valve wire path must be sized for the distance to the controller, as excessive wire length introduces voltage drop that can prevent reliable actuation. For large properties, wire gauge calculations must account for cumulative resistance, with heavier gauge used for distant zones. Common wire serving as the return path must be properly sized for a reliable circuit. The rain sensor wire typically uses a smaller gauge since it carries only a low-current signal, but it must be protected from physical damage and properly spliced to prevent moisture intrusion at connection points.

Advanced integration architectures may incorporate decoder-based systems, which reduce wiring complexity by allowing the controller to address individual valves through digital signals transmitted over a shared wire pair. Decoder controllers are particularly valuable in large commercial installations where running individual wires from each valve to a central controller would be impractical or cost-prohibitive. In these systems, each solenoid valve is equipped with a decoder module that listens for its unique address on the communication bus. The rain sensor integration remains straightforward, as the controller treats the sensor input as a global override that affects all zones regardless of their addressing method. Whether using conventional or decoder-based wiring, the fundamental principle remains the same: the rain sensor provides environmental awareness, the controller provides intelligence, and the solenoid valves provide the physical actuation that delivers water to the landscape with precision and efficiency.

Installation Best Practices for Reliable Long-Term Performance

Proper installation of solenoid valves and rain sensors is essential for reliable long-term performance. The process begins with careful valve box placement. Each valve should be installed in a valve box that provides adequate space for the valve body, wiring connections, and future maintenance access. The box must be positioned at the correct depth so that its lid sits flush with the surrounding grade, protecting the valve from mower damage and pedestrian traffic while allowing easy access for service. The valve should be oriented with the flow arrow aligned in the direction of water movement, and all threaded connections should be sealed with appropriate thread sealant to prevent leaks. Backfilling around the valve box with pea gravel or crushed stone promotes drainage and prevents the box from filling with standing water, which can damage electrical connections over time.

Rain sensor placement requires careful consideration of the sensor's operating environment. The sensor must be mounted fully exposed to rainfall, not sheltered by branches, eaves, or other obstructions. It should not be positioned where irrigation overspray from adjacent zones could cause false rain detection. Most manufacturers recommend mounting the rain sensor at a height of approximately six feet on a north-facing surface to minimize the influence of direct sunlight, which can accelerate evaporation from the sensor element and produce inaccurate readings. The sensor wire should be routed to avoid areas where it may be damaged by landscaping equipment, and all wire connections should be made with waterproof wire nuts or gel-filled connectors to prevent corrosion.

Commissioning and testing represent the final critical step in the installation process. After all solenoid valves, rain sensors, and controller wiring have been installed, the system should be tested zone by zone to verify proper valve operation, correct flow rates, and accurate sensor readings. Each solenoid valve should be manually opened using the controller's manual operation feature to confirm that it actuates properly and that water flows through the zone as designed. The rain sensor should be tested by simulating a rain event, either by wetting the sensor element manually or by triggering the sensor's test mode, to confirm that the controller properly suspends irrigation in response to the sensor signal. Documentation of all test results, valve locations, wire paths, and controller programming ensures that future maintenance technicians have the information they need to service the system efficiently.

Maintenance Protocols and Troubleshooting Common Solenoid Valve Issues

A well-designed maintenance protocol extends the service life of solenoid valves and rain sensors while minimizing the risk of unexpected system failures. For commercial landscape installations, maintenance should follow a seasonal schedule that aligns with the irrigation operating season. At the start of each season, all valves should be inspected for wear, corrosion, or damage. Diaphragms should be checked for tears, and worn valves should be rebuilt or replaced. Wiring connections should be inspected for corrosion and damaged wire repaired or replaced. The rain sensor should be cleaned to remove accumulated debris, bird droppings, or mineral deposits that could interfere with its ability to detect precipitation accurately. Controllers should be inspected for firmware updates and battery backup status.

Troubleshooting common solenoid valve issues requires a systematic approach. A valve that fails to open may have a burned-out coil, a stuck plunger, a damaged diaphragm, or a wiring problem. A multimeter reading across the coil can quickly identify a burned-out component, which reads open circuit or out of its rated range. If the coil tests good, the problem may be mechanical, requiring disassembly to inspect the plunger and diaphragm. A valve that fails to close may have a torn diaphragm, a weakened return spring, or debris lodged in the valve seat. In some cases, simply flushing the valve body and replacing the diaphragm kit restores proper operation. Systematic troubleshooting eliminates guesswork and reduces downtime, which is particularly important in commercial settings where irrigation failures can quickly lead to visible landscape damage and client dissatisfaction.

Rain sensor troubleshooting follows a similar pattern of systematic diagnosis. If the controller does not respond to rainfall, the sensor element may be worn, the wiring may be damaged, or the controller configuration may not be set to recognize the sensor input. Replacing the hygroscopic disk or tipping-bucket mechanism, depending on the sensor type, is a routine maintenance task that restores reliable rain detection. In regions with hard water, mineral deposits on the sensor can interfere with moisture absorption, requiring periodic cleaning. For B2B providers managing multiple properties, standardized maintenance checklists ensure consistent service quality and reduce the training burden for field technicians.
