Sprinkler Spacing and Head-to-Head Coverage: Layout Rules for Landscape Contractors

Why Head-to-Head Coverage Is the Non-Negotiable First Rule of Sprinkler Layout

Head-to-head coverage is the layout rule that every sprinkler must throw water all the way to the next sprinkler in every direction, and head-to-head coverage is the non-negotiable first rule of sprinkler layout because no other rule can compensate for a head-to-head violation. A sprinkler that does not reach the next sprinkler leaves a dry spot in the middle of the coverage pattern, and the dry spot shows up as a brown patch in the lawn within 2-3 weeks of operation. The brown patch cannot be fixed by longer run time (because the head-to-head area gets over-watered) or by higher pressure (because the higher pressure just pushes the dry spot further out). The brown patch can only be fixed by re-spacing the sprinklers or by adding more sprinklers.

Head-to-head coverage is achieved when the sprinkler spacing equals the sprinkler's diameter of coverage (throw distance x 2). A sprinkler that throws 30 feet must be spaced 30 feet from the next sprinkler in every direction. A sprinkler that throws 15 feet must be spaced 15 feet from the next sprinkler. The head-to-head rule applies to all sprinkler types (rotors, sprays, Rotary Nozzles), and the head-to-head rule applies to all geometries (square, triangular, rectangular). The rule is universal because the rule is a geometric constraint: water travels in an arc from each sprinkler, and the arcs must touch at the midpoint between the sprinklers for the arcs to fully cover the area between them per the Hunter Industries sprinkler spacing reference.

The 80% rule is the fallback when the contractor cannot achieve full head-to-head coverage. The 80% rule says: space the sprinklers at 0.8 x the diameter of coverage (which is 0.6 x the spacing for a 0.8-diameter layout). The 80% rule provides 80% of the head-to-head coverage with 60% of the spacing, which trades off some uniformity for fewer sprinklers per zone. The 80% rule is sometimes acceptable in low-priority turf areas, but the 80% rule is not acceptable for high-visibility front lawns, sports fields, or commercial landscapes. The 80% rule is the fallback, not the default, and the 80% rule should be documented as a deliberate design choice rather than an accidental under-design.

Square vs Triangular Spacing: 2 Geometries, 2 Water Bills

Square spacing and triangular spacing are the 2 main geometries for sprinkler layout, and the 2 geometries have different trade-offs in uniformity, head count, and layout complexity. Square spacing places sprinklers in a grid pattern where the spacing between rows equals the spacing between sprinklers in a row. Triangular spacing places sprinklers in a staggered pattern where the spacing between rows equals the in-row spacing x 0.866. The 2 geometries are equivalent in terms of head-to-head coverage when the spacing is the same, but the 2 geometries differ by 15% in distribution uniformity and by 15% in head count for the same area per the landscape sprinkler location determination reference.

Square spacing is easier to lay out, easier to calculate, and easier to inspect. The contractor simply measures the row spacing and the in-row spacing with the same tape, and the contractor verifies the spacing visually because the grid pattern is immediately recognizable. The precipitation rate (PR) formula for square spacing is straightforward: PR = 96.3 x GPM / (sprinklers per zone x spacing squared). Square spacing is the default geometry for residential lawns and small commercial landscapes where layout simplicity matters more than uniformity.

Triangular spacing achieves 15% better water distribution uniformity (measured by Christiansen's uniformity coefficient, CU) and uses 15% fewer sprinklers to cover the same area. The triangular spacing saves material cost on the sprinkler heads, but the triangular spacing requires more careful layout because the rows must be staggered by exactly 0.866 x the in-row spacing. The PR formula for triangular spacing is: PR = 96.3 x GPM / (sprinklers per zone x spacing x 0.866 x spacing). Triangular spacing is preferred for large lawn areas where uniformity matters more than layout simplicity, and triangular spacing is the standard for golf course fairways, sports fields, and large institutional landscapes.

The 0.6 x Diameter Rule: How to Right-Size Spacing When Coverage Is Incomplete

The 0.6 x diameter rule is the spacing formula when a sprinkler cannot achieve full head-to-head coverage. The rule says: if a sprinkler throws water 30 feet in diameter, space the sprinklers at 30 x 0.6 = 18 feet apart. The 0.6 x diameter rule provides approximately 80% of the head-to-head coverage with 60% of the spacing, which trades off some uniformity for fewer sprinklers per zone. The 0.6 x diameter rule is sometimes called the "80% rule" because the 0.6 spacing delivers 80% of the throw distance coverage at the edge.

The 0.6 x diameter rule should only be used when wind, pressure, or boundary conditions prevent head-to-head coverage. The 3 typical scenarios are: (1) high wind sites (coastal, hilltop, open prairie) where the throw distance is reduced by wind drift; (2) low pressure sites where the sprinkler cannot achieve its rated throw distance; (3) narrow strip areas where the boundary prevents head-to-head (such as a 10-foot-wide parkway between sidewalk and curb). The 3 scenarios are legitimate reasons for the 0.6 x diameter rule, but the 3 scenarios must be documented in the design notes to distinguish the deliberate design choice from an accidental under-design.

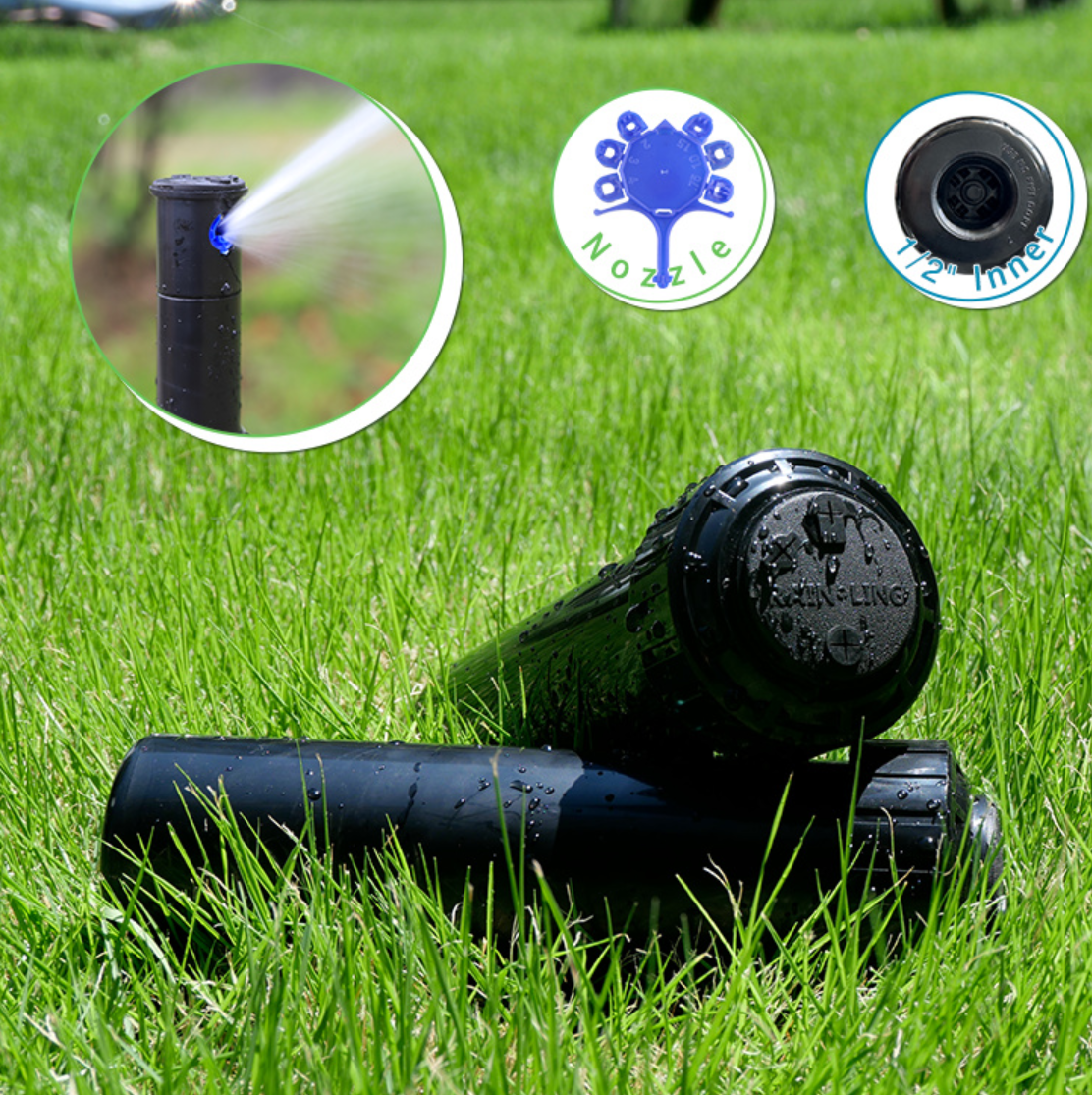

The 0.6 x diameter rule is applied differently for sprays and rotors. For sprays with a fixed 15-foot throw, the 0.6 x diameter rule gives a spacing of 15 x 0.6 = 9 feet. For rotors with an adjustable 30-50 foot throw, the 0.6 x diameter rule gives a spacing of 30 x 0.6 = 18 feet for a 30-foot rotor and 50 x 0.6 = 30 feet for a 50-foot rotor. The RAINLING RL5200H 1/2 inch ABS rotor coverage specs show 25-360 degree adjustable arc with throw distances from 20-35 feet depending on the nozzle and pressure, so the RL5200H is suitable for 12-21 foot spacing with the 0.6 x diameter rule and 20-35 foot spacing with full head-to-head.

Precipitation Rate (PR) Matching: Why Mixing Sprays and Rotors Floods the Lawn

Precipitation rate (PR) is the rate at which a sprinkler applies water to the lawn, measured in inches per hour (in/hr) or millimeters per hour (mm/hr). PR is calculated as: PR = 96.3 x GPM per sprinkler / (area per sprinkler in square feet). For a spray with 1.5 GPM at 15 x 15 foot spacing: PR = 96.3 x 1.5 / (15 x 15) = 0.64 in/hr. For a rotor with 3.5 GPM at 30 x 30 foot spacing: PR = 96.3 x 3.5 / (30 x 30) = 0.37 in/hr. The PR for sprays is typically 1.0-1.5 in/hr, and the PR for rotors is typically 0.3-0.6 in/hr per the ANSI/ASABE S626 landscape irrigation uniformity standard.

PR must match between sprinklers on the same zone because the sprinklers on a zone operate for the same duration. A zone with mixed PR (sprays at 1.5 in/hr + rotors at 0.4 in/hr) will over-water the spray areas and under-water the rotor areas, leaving the lawn with a checkerboard pattern of wet and dry spots. The mixed PR cannot be fixed by adjusting the run time, because the run time that delivers the right water to the rotor areas over-waters the spray areas, and the run time that delivers the right water to the spray areas under-waters the rotor areas.

PR matching is achieved by selecting sprinklers with the same PR for the same zone, which typically means all sprays or all rotors, but not both. The 2 exceptions are: (1) rotary nozzles (such as the Hunter MP Rotator or the RAINLING rotary nozzle series) which deliver rotor-like PR (0.4 in/hr) from a spray body, allowing mixed-zone compatibility; (2) matched precipitation rate nozzles within a spray series, where the manufacturer offers nozzles with different arc angles but the same PR (Rain Bird HE-VAN series is an example). The 2 exceptions allow some flexibility in zone design, but the 2 exceptions do not eliminate the PR matching requirement.

Wind Drift Adjustments: How to Lay Out Sprinklers in Coastal or Open Zones

Wind drift is the wind that pushes the water stream off-target during the throw, and wind drift is the most common reason that a head-to-head layout does not deliver head-to-head coverage in the field. Wind drift affects sprinklers above 5 mph (2.2 m/s), and wind drift becomes severe above 10 mph (4.5 m/s). The ANSI/ASAE S436.1 test procedure notes that sprinkler distribution uniformity decreases when wind exceeds 1 m/s (2.2 mph), and the test is invalid above 5 m/s (11.2 mph). The wind drift adjustment compensates for the wind blowing the water stream off-target.

The wind drift rule of thumb: for every 5 mph of wind above 5 mph, reduce the spacing by 10%. A sprinkler with 30 ft head-to-head spacing in still air becomes 30 x 0.9 = 27 ft at 10 mph wind, and 30 x 0.8 = 24 ft at 15 mph wind. The wind drift adjustment is critical in coastal zones, on exposed hilltops, and in open prairie sites. The wind drift adjustment is also critical at night when the wind often picks up after sunset, and the wind drift adjustment should be based on the prevailing night-time wind speed rather than the daytime lull.

The wind drift adjustment is applied to the head-to-head spacing, not to the 0.6 x diameter fallback spacing. The wind drift adjustment is also applied to the precipitation rate calculation, because the wind drift effectively reduces the area that the sprinkler waters. A 30-foot sprinkler at 15 mph wind might only effectively water a 24-foot diameter circle, which is the same effect as reducing the spacing to 24 feet. The wind drift adjustment is documented in the design notes as a deliberate design choice, and the wind drift adjustment is verified in the first-week site walk after the system is commissioned.

The Head-to-Head Worksheet: 7 Numbers Every Contractor Should Compute Before Pipe

The head-to-head worksheet is the 7-number calculation that every contractor should complete before sizing pipe for a sprinkler zone. The 7 numbers are: (1) total flow rate (GPM) for the zone = sprinklers per zone x GPM per sprinkler; (2) total zone area (sq ft) = length x width of the zone; (3) precipitation rate (in/hr) = 96.3 x GPM / (head count x spacing x row spacing); (4) minimum operating pressure (psi) for the most-distant sprinkler; (5) maximum flow velocity (ft/sec) in the lateral pipe (target 5 ft/sec); (6) total zone flow velocity in the main pipe (target 7 ft/sec); (7) estimated water hammer pressure surge (psi) when the zone valve closes. The 7 numbers together determine the pipe size, the valve size, and the pressure regulator specification.

The first 3 numbers (flow rate, area, precipitation rate) determine the hydraulic capacity of the zone. The 3 numbers are used to verify that the water source (typically a residential water meter or a commercial irrigation meter) can deliver the required flow at the required pressure. A typical 1-inch residential meter delivers 15-25 GPM at 40-60 psi, which is enough for 5-10 rotors at 3.5 GPM each. A typical 2-inch commercial meter delivers 80-150 GPM at 60-80 psi, which is enough for 25-45 rotors at 3.5 GPM each. The first 3 numbers also determine the controller station count (typically 4-12 stations for residential, 12-48 stations for commercial).

The next 3 numbers (minimum pressure, lateral velocity, main velocity) determine the pipe sizing. The minimum pressure for the most-distant sprinkler is typically 30 psi for sprays and 40 psi for rotors, and the minimum pressure is achieved by sizing the lateral pipe large enough to limit friction loss to 5-7 psi across the lateral. The maximum flow velocity in the lateral is 5 ft/sec to avoid water hammer, and the maximum flow velocity in the main is 7 ft/sec to balance friction loss against pipe cost. The 3 numbers together determine the pipe diameter (typically 3/4" to 1-1/2" for laterals, 1" to 3" for mains).

The seventh number (water hammer pressure surge) determines whether a pressure regulator or surge protector is needed. The water hammer surge is calculated as: surge pressure (psi) = 0.05 x flow velocity (ft/sec) x valve closure time (seconds). A 5 ft/sec flow velocity with a 0.5 second valve closure gives a surge pressure of 0.05 x 5 x 0.5 = 0.125 psi per the ASAE S398.1 sprinkler testing and performance reporting standard, which is negligible. A 7 ft/sec flow velocity with a 0.1 second solenoid closure gives a surge pressure of 0.05 x 7 x 0.1 = 0.035 psi, also negligible. The 2 examples show that water hammer is rarely a problem in residential irrigation, but water hammer becomes significant in large commercial systems with fast-closing electric valves.

3 Layout Mistakes That Show Up in the First 30 Days of Operation

Three layout mistakes show up in the first 30 days of operation, and the 3 mistakes are caught by the first-week site walk after the system is commissioned. The 3 mistakes are: (1) dry corners; (2) water on the driveway; (3) triangular spacing miscalculation. The 3 mistakes together account for 80% of the callback visits in the first 30 days, and the 3 mistakes are preventable by the pre-pipe worksheet and the first-week site walk.

The first mistake is dry corners. The contractor forgot that the corner sprinkler needs to rotate 90 degrees instead of 180 degrees to cover the corner area, and the corner shows up as a brown triangle. The corner sprinkler is typically the most-distant sprinkler on the zone (because it's on the corner of the layout), and the corner sprinkler is often the first to lose pressure when other sprinklers on the same zone are operating. The fix for dry corners is to specify a corner rotor (such as the RAINLING RL5200H with 25-360 degree adjustable arc) and to verify the pressure at the corner sprinkler during the first-week site walk.

The second mistake is water on the driveway. The contractor placed a sprinkler too close to the driveway edge and the overspray wets the pavement, wasting water and staining the concrete. The fix for driveway overspray is to specify a low-angle nozzle or to adjust the sprinkler arc to 90-180 degrees instead of 180-360 degrees for the sprinkler adjacent to the driveway. The contractor can also use a strip-pattern nozzle (such as the RAINLING RL5200H 1/2 inch ABS rotor with adjustable arc) for the strip between the lawn and the driveway.

The third mistake is triangular spacing miscalculation. The contractor used in-row spacing for the row-to-row spacing, and the actual triangular pattern is over-spaced by 13% (because 0.866 was omitted). The 13% over-spacing shows up as dry strips between the rows, and the dry strips are typically 1-2 feet wide depending on the throw distance. The fix for triangular spacing miscalculation is to mark the row positions with string lines before the sprinklers are installed, and to verify the row-to-row spacing with a tape measure at 5 random locations per zone.

For a landscape contractor who needs layout support from our engineers for a head-to-head spacing design on a residential or commercial project, the RAINLING engineering team is available at the contact us page for the sprinkler type selection, the spacing calculation, the precipitation rate matching, and the pressure regulator sizing. The team can deliver a layout proposal with the head-to-head spacing, the precipitation rate calculation, and the pipe sizing within 7 days of the inquiry. The team also supports the on-site commissioning and the first-week site walk for the installed system.
