Venturi Fertilizer Injector for Drip-Fertigation: How Proper Sizing Ensures Nutrient Uniformity in Large-Scale Agricultural Operations

Drip-fertigation is one of those irrigation sub-disciplines where the failure mode is rarely a leak or a clogged dripper — it is nutrient banding across the field, where upstream rows get a higher fertilizer concentration than downstream rows within the same irrigation cycle. The visible symptom is growth difference: the upstream plants are darker green and grow faster, the downstream plants are paler and grow slower, and the difference is consistent across cycles. The root cause is almost always a Venturi fertilizer injector that was sized against the wrong reference parameter. Engineers who are new to drip-fertigation often size the injector against the dripper flow, on the assumption that the dripper is the rate-limiting device. The dripper is downstream of the injector and is not the parameter the injector responds to. The injector responds to the mainline flow at the point of installation, and the right sizing logic has to start there.

At Rainling, we supply the controller-and-valve subsystem that interfaces with Venturi injectors across a range of agricultural and Landscape Irrigation projects in Asia, the Middle East, and Southern Europe. Our product range covers rotors, spray bodies, solenoid valves, and 8-station controllers, with over 4,700 m² of factory area and export to 40+ countries. The Venturi injector itself is typically specified separately by the irrigation designer, but the controller-and-valve subsystem has to match the injector cycle and the zone run-time, and that is where most of the field-sizing mistakes show up.

What a Venturi fertilizer injector actually does

A Venturi fertilizer injector uses the pressure differential created when water flows through a constricted throat to draw fertilizer solution from an open tank into the irrigation mainline. The injector has no moving parts and is powered entirely by the mainline flow. The throat diameter and the motive flow together determine how much fertilizer solution is drawn per unit time, and how much pressure loss the injector introduces into the mainline. Two design parameters have to be set simultaneously: the injection rate (how much fertilizer per minute goes into the mainline) and the pressure loss (how much mainline pressure the injector consumes to do it).

The injection rate target is typically 1-3% of mainline flow, depending on the crop nutrient requirement and the fertilizer concentration in the tank. The pressure loss target is typically limited to 10-20% of the available mainline pressure, to avoid violating the dripper uniformity specification downstream. The two targets constrain each other: a higher injection rate at the same mainline flow requires a smaller throat, which raises the pressure loss. The selection is iterative, and the engineer sizes the throat to meet the injection rate target, then checks that the resulting pressure loss does not violate the dripper uniformity spec.

Why mainline flow, not dripper flow, is the reference parameter

The reason the mainline flow is the reference parameter (and not the dripper flow downstream) is that the Venturi throat responds to the pressure differential across it, and that pressure differential is set by the mainline flow at the point of installation. The dripper flow is determined by the dripper specification and the pressure at the dripper, which is downstream of the injector. If the dripper flow is the only parameter the engineer sizes against, the actual mainline flow at the injector location may be much larger or much smaller than the assumed dripper flow, and the injector will not deliver the target injection rate.

This is the mistake we see most often in field commissioning. The designer calculates the dripper flow from the dripper specification and the zone layout, then sizes the Venturi throat to deliver 2% of that dripper flow as fertilizer injection. The actual mainline flow at the injector is typically 5-10x the dripper flow because the mainline serves the entire zone, and the injector ends up drawing far less fertilizer than the design target. The result is nutrient banding: the zone run-time ends before the fertilizer concentration reaches steady-state, and the downstream rows receive a partial dose.

What undersizing and oversizing each look like in the field

An undersized Venturi fertilizer injector shows up in the field as nutrient banding across the irrigation zone. The injector cannot draw enough fertilizer solution per unit time to keep the concentration uniform, so the upstream drippers receive a higher nutrient concentration than the downstream drippers. In row-crop applications, this shows up as visible growth differences across the field within a single irrigation cycle, and the downstream rows effectively receive a partial fertilizer dose. The corrective action is to replace the injector with a larger throat size, or to extend the zone run-time so the injector has more time to reach steady-state concentration.

An oversized Venturi fertilizer injector shows up as excessive pressure loss in the mainline. The pressure drop across the injector throat drops the mainline pressure below the dripper operating pressure specification, which causes dripper flow variation across the zone. The dripper uniformity spec (typically expressed as a Christiansen uniformity coefficient, or CU) drops below the design target, and downstream drippers under-deliver compared to upstream drippers. The corrective action is to replace the injector with a smaller throat size, or to install a pressure regulator upstream of the injector to maintain mainline pressure within the design band.

How the controller-and-valve subsystem interacts with the Venturi injector

The controller schedules irrigation and fertigation cycles, and the solenoid valves (typically 3/4-inch or 1-inch in agricultural applications) open and close zones on the schedule. When the controller calls for fertigation, the Venturi injector activates and draws fertilizer into the mainline during the scheduled zone run-time. The injector sizing has to match the controller cycle and the zone run-time, because a too-short cycle under-fills the zone and a too-long cycle over-fills it. At Rainling, our 8-station controllers are designed to schedule fertigation cycles with zone run-time programming that interfaces with Venturi injectors and 3/4-inch solenoid valves across the typical agricultural layout.

The interaction between controller, valve, and injector is the part of the system that field technicians most often overlook. The injector may be sized correctly against the mainline flow, but if the controller schedules a zone run-time that is too short for the injector to reach steady-state concentration, the downstream rows still receive a partial dose. The controller cycle has to be long enough for the injector to fill the mainline and for the zone to receive the target fertilizer volume, and that timing has to be programmed into the controller at commissioning rather than assumed.

How to size a Venturi fertilizer injector for a drip-fertigation system

The sizing workflow we recommend for drip-fertigation system designers is:

1. Determine the mainline flow rate at the injector location. Measure or calculate the mainline flow at the point where the Venturi injector will be installed. This is the reference parameter for injector sizing, not the dripper flow downstream.
2. Set the target fertilizer injection rate as a fraction of mainline flow. The target injection rate is typically 1-3% of mainline flow, depending on the crop nutrient requirement and the fertilizer concentration in the tank.
3. Select the Venturi throat diameter from the manufacturer sizing table. Use the manufacturer sizing table to select the throat diameter that delivers the target injection rate at the available mainline flow. The table will also list the resulting pressure loss across the injector.
4. Verify the pressure loss does not violate the dripper uniformity spec. Check that the pressure loss across the Venturi injector does not drop the mainline pressure below the dripper operating pressure specification. The Christiansen uniformity coefficient for the zone must stay within the design target.
5. Confirm with field EC measurement during a fertigation cycle. After installation, run a fertigation cycle and measure the electrical conductivity at the upstream and downstream ends of the zone. The EC spread should be within the design band (typically 5-10% of target).

The five-step workflow closes the gap between the design calculation and the field outcome. Engineers that skip the EC verification step typically discover the nutrient banding only when the crop shows visible growth differences, which is the wrong time to discover it. Engineers that run all five steps typically find that the injector sizing and the controller cycle have to be tuned together, and that the controller schedule is as important as the throat diameter for nutrient uniformity.

Rainling's solenoid valve and controller product range for fertigation

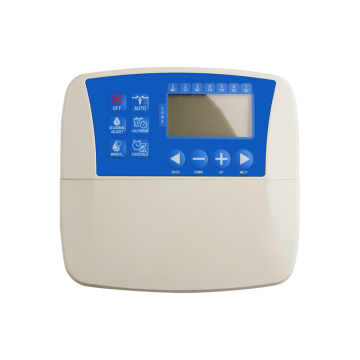

Rainling manufactures 3/4-inch and 1-inch solenoid valves for agricultural and landscape irrigation, with 24 VAC and 9 VDC coil options for compatibility with the major controller brands. The solenoid valve product range covers the typical zone run-time and pressure requirements for drip-fertigation systems. The 8-station controllers handle up to 8 zones with independent schedule programming, which is the configuration most agricultural fertigation systems use.

Common pitfalls when specifying Venturi fertilizer injectors

Across the agricultural fertigation projects we have supplied components for, the recurring pitfalls are:

• Sizing the injector against dripper flow rather than mainline flow. The dripper is downstream of the injector and is not the parameter the injector responds to. Sizing against dripper flow leads to undersized injectors and nutrient banding.
• Ignoring the pressure loss constraint. A throat that meets the injection rate target but introduces excessive pressure loss will violate the dripper uniformity spec downstream. The pressure loss check is as important as the injection rate check.
• Skipping the field EC verification. The design calculation predicts uniformity; the field EC measurement confirms it. Skipping the field step means the nutrient banding is discovered only when the crop shows visible growth differences.
• Mismatching the controller cycle to the injector steady-state time. The zone run-time has to be long enough for the injector to reach steady-state concentration. A too-short cycle under-fills the zone even with a correctly sized injector.

The four pitfalls together account for the majority of nutrient banding failures we see in field commissioning. None of them is an injector hardware problem; they are system integration problems that have injector sizing as their root cause. Procurement teams that catch these in design review rather than in crop scouting are the teams that avoid the failure mode.

FAQ highlights on Venturi injector sizing for drip-fertigation

What procurement teams should look for in a fertigation subsystem

For procurement teams specifying a drip-fertigation subsystem, the four evaluation criteria we share most often are: controller programmability for fertigation cycles with independent zone run-time (the controller has to support fertigation-specific cycle programming, not just irrigation scheduling), solenoid valve pressure rating that matches the mainline pressure spec (3/4-inch valves are typical for landscape and light-agricultural applications, 1-inch for higher-flow zones), injector sizing documentation that includes both the injection rate and the pressure loss (a vendor that ships only the injection rate data is missing half the specification), and field EC verification support as a commissioning deliverable (the vendor should provide the EC measurement protocol, not just the hardware).

• Related product page: Rainling Irrigation Product Range
• Related subsystem: 8-Station Irrigation Controllers
• Related subsystem: Solenoid Valves for Fertigation Zones

What we tell fertigation system designers during component selection is that the injector sizing and the controller cycle have to be specified together as a package — mainline flow, target injection rate, throat diameter, pressure loss envelope, controller zone run-time — not as a list of separate items checked independently. We have seen designers size the injector correctly against mainline flow and then program a controller cycle that is too short for the injector to reach steady-state concentration, and consequently the downstream rows still receive a partial dose. The combined specification is what delivers nutrient uniformity across the field, and we work with our customers to make sure the combined specification is what they specify against.

External references and standards

The Venturi fertilizer injector sizing logic and the drip-fertigation uniformity criteria described in this article are grounded in international irrigation and agricultural engineering standards. Procurement teams specifying drip-fertigation subsystems should cross-reference the design intent against the following authoritative sources:

• FAO, Pressurized Irrigation Techniques — Chapter 16: Fertigation — fao.org fertigation chapter — the authoritative FAO reference on Venturi-type fertilizer injectors, including pressure differential requirements, friction losses, and injection rate ranges for drip and Sprinkler Systems.
• USDA NRCS, National Engineering Handbook Part 652 — Irrigation Guide — nrcs.usda.gov NEH 652 — the US federal reference for micro-Irrigation System Design, including fertilizer injector placement, emitter flow variation, and backflow prevention that Rainling drip-fertigation subsystems must satisfy.
• Drip Depot, Fertilizer Injector Buying Guide — dripdepot.com buying guide — commercial reference on Venturi, MixRite, and Ez-Flo injector types, with solution ratio specifications and bypass installation guidance that Rainling controllers and solenoid valves are designed to support.
• University of Georgia CAES, Fertilizer Injector Selection, Maintenance and Calibration — uga.edu CAES field report — extension reference on Venturi-type injector selection, bypass installation, and the flow-rate categories that drive Rainling controller zone programming.
