What Is a Gear-Driven Rotor Sprinkler? Working Principle and Specification Basics

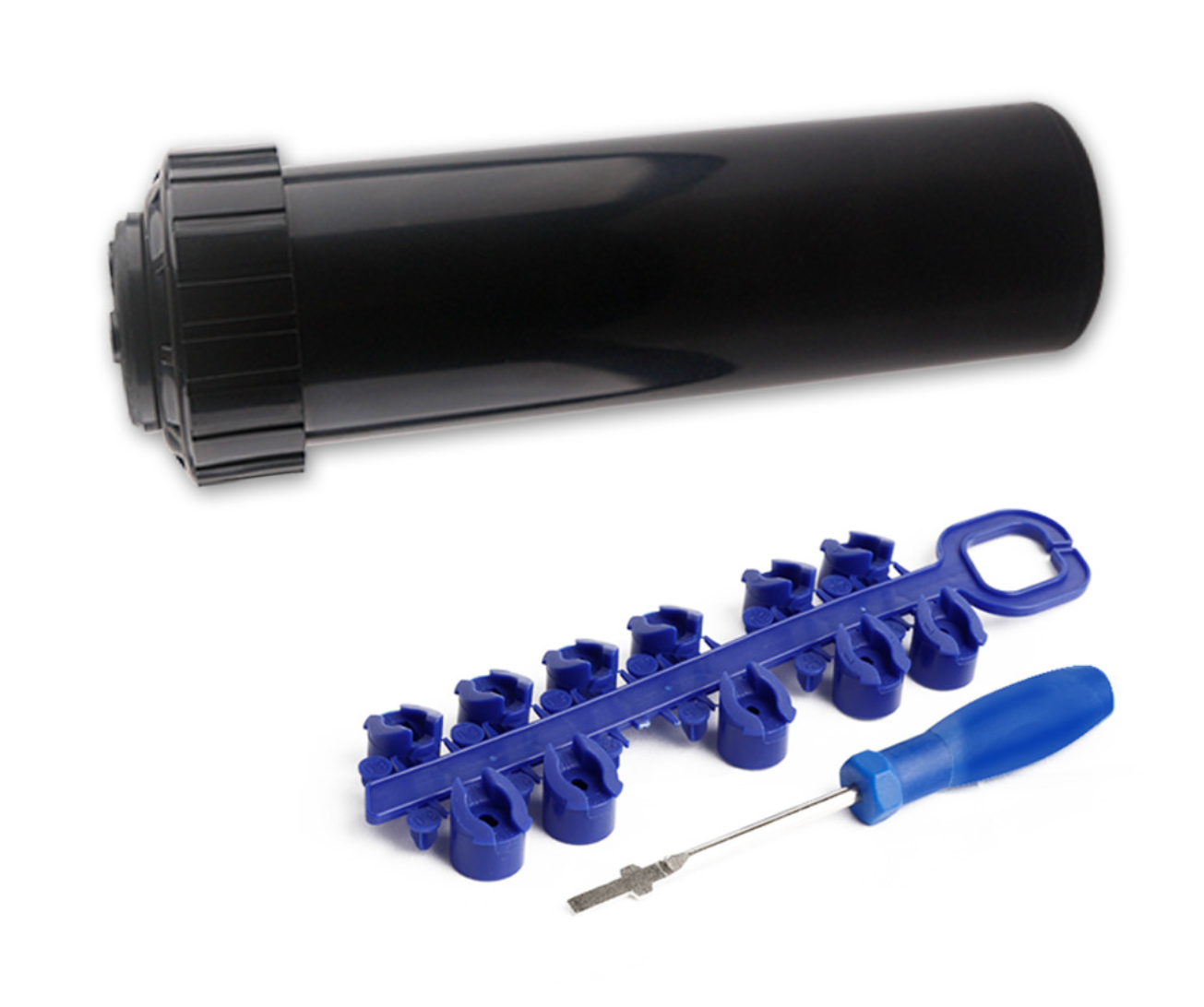

RAINLING RL5200 gear-driven rotor sprinkler. UV-resistant ABS housing, stainless steel internal gears, dual-seal technology, and tool-free arc adjustment. Part of the RAINLING gear-driven rotor range.

1. What "Gear-Driven" Means in a Rotor Sprinkler

"Gear-driven" describes the mechanism that turns the sprinkler head while it sprays. In a gear-driven rotor, water flowing into the body drives a small turbine or impeller. That impeller spins at a relatively high RPM. A sealed gear train inside the housing reduces that high RPM down to the slow, even rotation the nozzle needs to throw water across the landscape without creating dry stripes or wet rings.

The alternative is the impact rotor, which uses a spring-loaded arm that the water jet strikes to step the head around. Impact rotors are loud, throw a single heavy stream, and remain useful on some agricultural sites and rough-terrain applications. For Landscape Irrigation — parks, golf courses, sports fields, villa gardens, commercial campuses — the gear-driven rotor has replaced the impact rotor almost entirely because it is quieter, throws multiple streams at once, and distributes water more evenly.

The two words "gear-driven" therefore tell a landscape buyer three things: the rotation is continuous (not stepped), it is sealed inside the housing, and it is permanently lubricated by the manufacturer. All three are clues that the rotor is designed for a long service life in a landscape that is not going to be disassembled every season for maintenance.

2. How the Gear Drive Mechanism Works (Step by Step)

The mechanical sequence inside a gear-driven rotor follows the same pattern across manufacturers, even though the details of the gear train differ. Walking through the sequence explains why each rotor specification exists.

1. Water enters through the inlet. Pressurized water from the lateral line enters the body through the bottom inlet (typically 1/2" or 3/4" female thread, depending on the rotor family).
2. The impeller turns. The water flow drives a small impeller mounted on a vertical shaft. The impeller is the only moving part in direct contact with the water.
3. The gear train reduces speed. A planetary or worm gear train steps the impeller RPM down by a ratio in the range of 4:1 to 6:1, producing the slow, smooth rotation that the nozzle needs.
4. The nozzle sprays. One or more nozzles (sometimes a main nozzle plus a secondary nozzle on the same head) project the water at the calibrated radius and trajectory.
5. The arc mechanism returns the head. When the head reaches the end of its adjustable arc, an internal cam or trip mechanism reverses the direction so the head sweeps back across the landscape in the opposite direction.
6. The seal holds at rest and in pop-up. A dual seal arrangement keeps water inside the body while the head is retracted and while it is extended. This is the part that fails first on cheap rotors; it is the part that warrants the most attention on a quality rotor datasheet.

The gear train is permanently lubricated by the manufacturer, which is why gear-driven rotors do not require seasonal greasing the way older impact rotors did. The lubrication is sealed inside the housing for the service life of the rotor.

3. Quick Reference Chart — RL5200 Specification at a Glance

The chart below summarizes the published specification of the RAINLING RL5200 3/4" ABS gear-driven rotor. It is a working example of how a rotor datasheet is laid out. Other rotors in the same family will show similar lines with different values; the structure is the same.

Reading a rotor datasheet line by line against the project drawing is the engineering exercise that prevents the most common installation mistakes. The next sections explain what each line on the chart actually constrains.

4. Why Gear Drive Beats Impact Drive in Landscape Applications

The choice between gear-driven and impact-driven rotors is largely settled in modern landscape practice. The comparison is still useful, however, because it explains the specification differences between rotors aimed at the landscape market and rotors aimed at agricultural or rough-terrain sites.

For landscape projects where the Irrigation System is expected to disappear into the architecture of the space when not running, the gear-driven rotor is the correct choice. For agricultural or large open-field sites where uniformity is less important than reach and where the rotor does not need to retract, the impact rotor remains a viable option. The long-standing reference on rotor head comparison in the landscape industry is the Rain Bird rotor specification guide, which the procurement team can use as a benchmark against the published figures from any candidate manufacturer.

5. Pop-Up Height, Inlet Size, and What They Tell You

Two specifications on the datasheet constrain how the rotor is physically installed. Reading them correctly prevents trenching and turf-clearance mistakes.

• Pop-up height. The riser lifts this far above the soil when the zone is pressurized. A 12.5 cm pop-up is appropriate for short turf and ground-cover landscapes. For taller grass or shrub areas, a higher pop-up is needed so the nozzle clears the vegetation.
• Inlet size. The bottom thread diameter (1/2" or 3/4") must match the lateral line. A 3/4" inlet supports higher flow at lower pressure loss through the lateral, which is why mid-to-large landscape rotors such as the RL5200 family typically run a 3/4" thread.
• Product height. The total body length. This is the trench depth the installer needs to dig, and it is also the swing-arc clearance the rotor needs inside the body sleeve.

For most landscape projects, the installer will set the rotor on a swing-arc joint at the bottom of the lateral line, and the trench depth is sized to the product height plus a small gravel sump. Mismatches between the pop-up height and the surrounding turf are the most common cause of rotors that appear to "miss" their zone on a low-mown lawn.

6. Radius, Flow Rate, and Pressure — The Three Numbers That Define Coverage

Three numbers define what the rotor actually does on the landscape. All three are coupled; changing one changes the others.

• Radius. The throw distance from the rotor to the wetted edge. For a 3/4" ABS gear-driven rotor, the typical band is roughly 7 m to 14.5 m, depending on the nozzle installed and the working pressure at the head. Smaller nozzles and lower pressures sit at the shorter end; larger nozzles and higher pressures sit at the longer end.
• Flow rate. The volume of water the rotor delivers per unit of time at the chosen nozzle and pressure. Flow rate scales with both nozzle size and pressure; it is the number the installer uses to size the lateral line and the zone valve.
• Pressure. The water pressure at the rotor inlet. The rotor's published working pressure band (commonly 1.7 to 4.5 bar for landscape rotors) defines the window in which the radius and flow figures on the datasheet are valid.

For a buyer matching a rotor to a project drawing, the procedure is to pick the radius first (this is set by the geometry of the landscape and the head-to-head spacing rule), then look up the nozzle and pressure that delivers that radius on the rotor's published throw chart, then read the flow rate off the same chart to size the lateral. Doing the steps in this order avoids the common error of accepting the rotor's default nozzle and then discovering the radius does not match the design.

7. Five Landscape Use Cases for a 3/4" ABS Gear-Driven Rotor

The applications listed on a rotor datasheet are not generic. They tell the buyer which projects the manufacturer has validated the rotor against. The five use cases below are the landscape scenarios where a 3/4" ABS gear-driven rotor such as the RL5200 is a direct fit.

1. Public parks and urban landscaping. Medium-to-large turf areas with mixed pedestrian and amenity use. The rotor's quiet operation and retractable pop-up suit public spaces; the radius covers typical park head-to-head spacing.
2. Golf course tees, approaches, and fairway surrounds. Sports turf with consistent mowing height. The rotor's adjustable arc and the published precipitation rate fit golf course irrigation design.
3. Sports fields and stadium turf. Large rectangular turf areas with high traffic. The 3/4" inlet supports the higher flow needed to cover the area within an irrigation window that does not conflict with field use.
4. Luxury villa gardens and corporate campuses. Mixed landscape beds, ornamental turf, and architectural plantings. The rotor's low-elevation nozzle option (13°) reduces misting in windy corporate plazas.
5. Municipal irrigation systems and streetscape plantings. Larger civic installations where the rotor's published life-cycle and warranty data matter to the procurement team.

None of these scenarios is exotic; together they cover the bulk of the commercial and high-end residential landscape irrigation market. A buyer who can match a rotor's published figures to the design at the drawing stage rarely has to revisit the specification later. The U.S. EPA WaterSense program publishes outdoor irrigation design guidance that is widely used by North American landscape architects for water budgeting and zone layout, and the Irrigation Association (IA) maintains the certified irrigation designer credential and the corresponding best-practice references.

8. Specification Checklist Buyers Can Match to Project Drawings

The checklist below is the same one that RAINLING's irrigation engineering team uses when sizing a rotor to a project. Sending this list with the inquiry shortens the back-and-forth and produces a more accurate quote.

• Project type (park, golf course, sports field, villa, corporate campus, municipal)
• Required radius at the head (meters, set by the head-to-head spacing rule on the drawing)
• Available water pressure at the lateral line (bar or kPa)
• Available flow at the zone valve (m³/hr or l/min)
• Pop-up height required for the surrounding turf
• Inlet size that matches the existing lateral (1/2" or 3/4")
• Adjustable arc range needed (full circle or part circle)
• Nozzle elevation (standard 25° or low-elevation 13° for windy sites)
• Water quality notes (sand content, iron content, salinity — for material selection)
• Warranty and life-cycle data (accelerated life test hours, published service life)

With these ten items answered, the rotor supplier can return a sized recommendation within one business day. Missing one or two items is the most common cause of a multi-week back-and-forth that ends with a mis-sized rotor on site. RAINLING's manufacturing capability and quality control documentation supports direct technical dialogue at the specification stage, which usually shortens the design cycle. Buyers who want to benchmark rotor precipitation rates against international practice can reference the ISO 8029 standards for agricultural irrigation equipment and the related landscape irrigation guidance issued by national standards bodies.
