When a landscape irrigation project grows beyond 30 zones—whether it is a municipal park system, a golf course, or an agricultural holding—the traditional multi-wire controller approach starts to break down. Running 30+ individual valve wires from a central controller cabinet to distributed valve locations requires thousands of linear meters of copper wire, complex trenching layouts, and expensive junction boxes. The wiring alone can account for 30–50% of total Irrigation System Installation cost on large sites. That is where a decoder controller changes the economics fundamentally.

The RAIN LING CJ100 decoder controller replaces the multi-wire approach with a two-wire HSBUS communication bus that connects up to 100 decoder stations across a 3 km radius. Instead of 30 cables running in separate trenches, a single twisted-pair cable snakes through the site, and each valve location has a small decoder device that receives its commands from the central controller through the shared bus. The installation savings are substantial: industry comparisons between traditional and 2-wire decoder systems document that the two-wire approach can reduce total wiring by up to 70% on large commercial properties, with proportional savings in trenching labor, conduit materials, and junction box infrastructure.

At Lingxing Irrigation Technology (Ningbo) Co., Ltd.—manufacturer of the RAIN LING brand—our engineering team designed the CJ100 specifically for irrigation distributors, landscape contractors, and agricultural project managers who need to centrally control large irrigation networks without the installation complexity of traditional multi-wire systems. In this article, we explain how the HSBUS decoder architecture works, compare it to conventional controller systems, and provide practical guidance for specifying a decoder controller in your next large-scale project.

What Is a Decoder Controller and How Does HSBUS Communication Work?

A decoder controller is an Irrigation control system that uses a serial communication bus—typically a single two-wire cable—to send signals from the central controller to individual decoder modules installed at each valve location. Each decoder has a unique address programmed into it. The controller sends a signal addressed to a specific decoder, that decoder interprets the command and opens or closes its connected solenoid valve, and the controller moves to the next address. The entire cycle for 100 stations completes in a few seconds, which is faster than most electro-mechanical controllers can sequence through their stations.

The CJ100 uses RAIN LING's proprietary HSBUS (High-Speed Bus) communication protocol, which transmits both power and data over the same two-wire cable. This is the key technical feature that distinguishes a decoder system from conventional controllers. In a traditional system, the control cabinet contains individual relay outputs for each valve, and each valve requires its own home-run cable back to the cabinet. In the HSBUS system, the controller sends a low-voltage signal down the bus, and the addressed decoder uses the bus power to actuate its valve. There is no need for individual valve cables, no need for a common wire return path, and no practical limit on how far a valve can be from the controller as long as it is within the 3 km communication range.

The HSBUS protocol also supports two-way communication. The controller not only sends commands to decoders but also receives feedback signals confirming that the command was received and executed. This bi-directional capability enables real-time monitoring of valve status, flow sensor data, and soil moisture readings—features that are essential for large-scale precision irrigation management but are expensive to implement on traditional multi-wire systems.

CJ100 vs. Traditional Multi-Wire Controllers: A Side-by-Side Comparison

To understand when the CJ100 decoder controller makes sense for a project, it helps to compare it directly with the traditional multi-wire controller approach across the factors that matter most to irrigation contractors and specifiers.

Wiring and Installation Cost

The most immediate advantage of the CJ100 decoder system is wiring reduction. On a commercial project with 60 valve stations, a traditional controller requires 61 cables (60 individual valve wires + 1 common wire) running from the controller cabinet to the field. Each cable must be trenched to its valve location, labelled at both ends, and connected through weatherproof splices. The cable material cost alone for a 60-zone system at an average run length of 50 meters per valve is approximately 3,050 meters of multi-conductor cable, at roughly $1.50–3.00 per meter depending on gauge and insulation grade.

The CJ100 decoder system for the same 60-zone project requires a single two-wire cable (plus spur cables at decoder locations) totaling approximately 500–800 meters for the main bus, plus 60 decoder units costing $15–35 each. The total wiring material cost reduction is typically 60–70%, and the trenching labor reduction is similar because the contractor digs one continuous trench for the bus cable instead of 60 separate trenches. The Mottech guide to 2-wire decoder systems confirms that the labor and material savings from reduced wiring make decoder systems the preferred choice for projects exceeding 20–30 zones.

Scalability and Expansion

Traditional controllers are limited by their physical cabinet capacity. A typical 40-station controller has 40 relay outputs, and adding the 41st station requires adding an expansion module or replacing the controller entirely. The CJ100 supports up to 100 decoder stations from a single controller cabinet. Adding stations is as simple as installing a new decoder at the valve location and connecting it to the nearest point on the existing HSBUS cable—no new wiring back to the controller cabinet is required. This scalability makes the CJ100 particularly attractive for phased construction projects where irrigation zones will be added over multiple seasons.

Communication Distance

Traditional multi-wire controllers experience voltage drop on long wire runs. A 24 VAC solenoid valve at 200 meters from the controller may receive only 18–20 VAC due to wire resistance, causing unreliable actuation. The CJ100's HSBUS protocol maintains reliable communication up to 3 km from the controller to the furthest decoder, which is more than sufficient for the largest commercial landscapes, agricultural fields, and golf course projects. This extended range eliminates the need for satellite controllers or signal booster stations on most sites.

Fault Diagnosis and Maintenance

In a traditional multi-wire system, a fault (cut wire, short circuit, failed solenoid) requires the contractor to physically trace cables to locate the problem, often using a time-domain reflectometer or similar specialized equipment. In the CJ100 decoder system, the controller continuously monitors the bus and reports the specific decoder address that has lost communication—typically within 30 seconds of the fault occurring. This diagnostic capability reduces troubleshooting time from hours to minutes.

Product Architecture: What the CJ100 Decoder Controller Includes

The CJ100 is a complete decoder control system, not just a controller. It is designed as an integrated solution that includes the central controller unit and is compatible with the full RAIN LING ecosystem of decoders and accessory sensors.

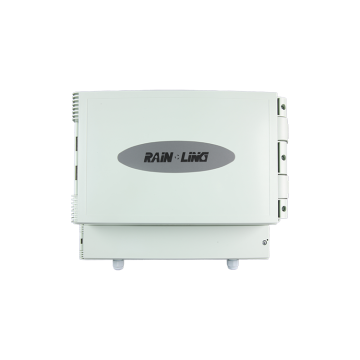

Controller unit: The central cabinet contains the HSBUS processor, power supply, touch screen interface, and GSM/APP communication module. The enclosure is IP65-rated ABS plastic with a double-door design for weather protection and lockable security. The unit measures 38×23.5×31.5 cm and weighs 3.5 kg.

AC and DC power options: The CJ100 is available in AC-powered (standard 110–240 VAC for grid-connected sites) and DC-powered (12 VDC with solar panel compatibility for off-grid installations) versions. This dual-power flexibility makes the same controller platform suitable for both urban commercial landscapes with reliable grid power and remote agricultural installations without grid connection.

Decoder compatibility: The CJ100 works with several types of field decoders, including 24 VAC solenoid decoders (for standard Irrigation Valves), 9 VDC solenoid decoders (for low-power DC pulse latching valves), soil moisture sensor decoders, rain sensor decoders, and flow meter decoders. This decoder compatibility allows the CJ100 to serve as the central intelligence for a fully integrated irrigation management system that monitors both actuator state and sensor feedback.

Mobile app and SMS control: The controller includes a built-in GSM module for remote programming and monitoring via smartphone app and SMS text commands. Operators can start, stop, or modify irrigation schedules from anywhere with cellular coverage—a critical feature for agricultural projects where the field operator may not visit the controller location daily.

For a complete overview of RAIN LING's product ecosystem, visit our homepage and our products page, which includes our full range of irrigation controllers, solenoid valves, and sensor products.

HSBUS Communication Protocol: Technical Advantages for Large Sites

The HSBUS protocol is the core engineering achievement of the CJ100 system. While many irrigation decoder systems on the market use proprietary protocols that lock the customer into a single manufacturer's decoder range, HSBUS is designed with flexibility in mind. The protocol handles both power delivery and data communication over a standard two-wire cable (typically 2.5–4.0 mm² cross-section for the main bus, depending on total decoder count and maximum distance).

Key technical parameters of the HSBUS communication include:

• Topology: Daisy-chain (series connection of decoders along the bus) or star (multiple spur cables from a junction point). Both topologies are supported, giving contractors flexibility to adapt the bus layout to site constraints.
• Maximum bus length: 3 km from controller to furthest decoder. For sites exceeding 3 km, signal repeaters can be inserted to extend the range.
• Maximum stations: 100 decoders per controller. For projects requiring more than 100 stations, multiple CJ100 controllers can be networked through the mobile app interface.
• Communication speed: Full polling cycle for 100 stations completes in under 5 seconds, ensuring that the irrigation schedule runs on time without latency between zone activations.
• Surge protection: Integrated transient voltage suppression on both the power input and the HSBUS communication lines, protecting the controller and connected decoders from lightning-induced surges. For installations in high-lightning regions, we recommend additional external surge arrestors at the main bus entry point.

The HSBUS protocol's combination of long communication distance, flexible topology, and integrated surge protection makes it particularly well-suited for large agricultural sites where the controller may be located at a farm office or equipment shed while irrigation valves are distributed across hundreds of hectares.

Practical Applications: Where the CJ100 Decoder Controller Excels

Based on our field experience and feedback from irrigation distributors who specify the CJ100 for their projects, the decoder controller performs best in the following application scenarios:

Large Commercial Landscape Maintenance

Corporate campuses, multi-building commercial developments, and municipal park systems typically have 40–80 irrigation zones distributed across 5–30 hectares. The traditional approach requires 40–80 dedicated valve wires running from a mechanical room or equipment shed to each zone's valve location. The CJ100 reduces this to a single bus cable running through the site, with decoder boxes at each valve cluster. Landscape maintenance contractors report installation time reductions of 40–60% compared to conventional controller systems on sites exceeding 30 zones.

Agricultural Irrigation Management

For drip irrigation and micro-sprinkler systems in orchards, vineyards, and row crop agriculture, the ability to control 100 independent zones from a single controller enables precision irrigation management that would be impractical with conventional controllers. Each zone can have its own irrigation schedule based on crop type, soil type, and growth stage. The CJ100's GSM remote control capability is particularly valuable in agricultural settings where the farm manager may be kilometers away from the controller location.

Golf Course Irrigation

Golf courses present one of the most demanding irrigation control challenges: 50–150 irrigation stations spread across 30–60 hectares, often with significant elevation changes and aesthetic watering requirements. The CJ100 decoder system is a cost-effective alternative to the proprietary golf course controllers that typically cost 3–5× more per station. While the CJ100 does not include the graphical course mapping features of dedicated golf controllers, its core irrigation scheduling and remote control functionality is sufficient for many municipal and regional golf courses.

For more information on integrating the CJ100 with specific solenoid valve types and accessory sensors, see our solenoid valve product page and our rain sensor product page. For smaller-scale projects that do not require the full 100-station capacity of the CJ100, our 8-station controller provides a more cost-effective entry point into the RAIN LING control ecosystem.

Installation Considerations for Decoder Controller Systems

While the CJ100 decoder system simplifies wiring compared to traditional controllers, proper installation planning is still essential for reliable long-term operation. The following considerations apply to all decoder system installations:

1. Bus cable specification: Use direct-burial-rated twisted-pair cable with a minimum conductor cross-section of 2.5 mm² for bus runs under 1 km, and 4.0 mm² for runs up to 3 km. Shielded cable is recommended in areas with high electromagnetic interference.
2. Decoder grounding: Each decoder unit must be properly grounded through the valve's ground connection to protect against lightning-induced surges. Decoders installed in valve boxes should have the ground wire bonded to the valve box's ground rod where local code requires it.
3. Bus termination: The far end of the HSBUS cable must be terminated with a resistor (typically 120 ohms) to prevent signal reflection that can cause communication errors at high data rates. The controller's installation manual specifies the exact termination requirements.
4. Spur cable protection: Spur cables connecting decoders to the main bus should be protected with in-line fuses or circuit breakers rated at 2–5 amps, sized according to the number of decoders on the spur. This prevents a single shorted decoder from disabling the entire bus.
5. Cable identification: Label both ends of each bus segment and spur cable with the decoder address range it serves. This documentation dramatically reduces troubleshooting time when a fault occurs—which is exactly the scenario where the decoder system's diagnostic advantage over traditional controllers becomes most valuable.

Our news and updates page includes installation case studies and technical bulletins that provide additional guidance for contractors who are installing decoder controller systems for the first time.

System Cost Analysis: Decoder vs. Traditional Controller

To help irrigation distributors and specifiers make informed purchasing decisions, we provide the following cost comparison for a typical 60-zone commercial irrigation project:

Traditional multi-wire system: 60-station controller ($1,200–2,500) + 3,050 meters of individual valve wire at $2.00/m ($6,100) + conduit and junction boxes ($800–1,200) + trenching labor 60 runs at $150/run ($9,000) = total $17,100–18,800.

CJ100 decoder system: CJ100 controller ($800–1,500) + 60 decoders at $25 each ($1,500) + 650 meters of two-wire bus cable at $2.50/m ($1,625) + trenching labor 1 run at $3,000 ($3,000) = total $6,925–7,625.

The decoder system saves approximately $10,000–11,000 (55–60%) on a 60-zone installation. As the zone count increases, the savings grow because the decoder system's incremental cost per additional zone is just the cost of one decoder plus a short spur cable, while the traditional system's incremental cost includes the cable run from the controller to the new valve location, which may be 100–300 meters on a large site.

For project-specific cost estimates and system design assistance, our engineering team provides application support through the RAIN LING contact page. We help irrigation distributors and contractors select the correct controller configuration, decoder types, and bus topology for their specific project requirements.

Additional technical resources on decoder technology can be found through Crysberg's 2-wire decoder technology documentation, which provides independent technical background on the decoder system architecture used by multiple manufacturers in the irrigation industry.

Frequently Asked Questions

How many decoders can the CJ100 controller support simultaneously?

The CJ100 supports up to 100 decoder stations from a single controller unit. All 100 stations can be programmed independently with individual schedules, run times, and watering frequencies. The controller cycles through all programmed stations in sequence, with a total cycle time of under 5 seconds for all 100 stations.

Can the CJ100 controller work with existing solenoid valves, or does it require special decoder-compatible valves?

The CJ100 works with standard 24 VAC irrigation solenoid valves through its decoder modules. Each valve location requires a decoder unit that connects to the HSBUS cable and provides the 24 VAC output to the valve. The valve itself is a standard irrigation solenoid valve—no special decoder valve is needed.

What is the maximum distance between the controller and the furthest decoder?

The CJ100 supports communication up to 3 km from the controller to the furthest decoder using 4.0 mm² bus cable. For installations exceeding 3 km, signal repeater modules can be inserted to extend the range. The maximum distance also depends on the total number of decoders on the bus and the cable gauge used.

Is the CJ100 controller weatherproof for outdoor installation?

Yes. The CJ100 enclosure is rated IP65 (waterproof and dustproof) with an ABS plastic housing and a double-door design. The controller can be mounted directly on an exterior wall or equipment rack without requiring a separate weatherproof enclosure. For installations in extreme environments (desert heat, tropical humidity, cold storage), we recommend the controller be mounted in a shaded or ventilated location.

How is the CJ100 programmed—through the touch screen, mobile app, or both?

Both. The controller has an integrated LCD touch screen for local programming, and the GSM module enables remote programming through the RAIN LING mobile app (iOS and Android). The mobile app mirrors all touch screen functions, including station scheduling, run time adjustment, manual operation, and system diagnostic display. Programming changes made through either interface are synchronized in real time.

What happens when a decoder fails—does the entire irrigation system stop?

No. A single decoder failure affects only the valve(s) connected to that decoder. The HSBUS protocol isolates the fault so that other decoders on the bus continue to operate normally. The controller detects the failed decoder and generates an alert (via SMS or mobile app notification) identifying the specific decoder address that is no longer communicating. The failed decoder can be replaced without interrupting irrigation operation on the other zones.
