Water Pressure Requirements for Rotors, Spray Bodies, and Rotary Nozzles (PSI Guide)

Why Water Pressure Is the Single Most Mis-Specified Variable in Residential and Commercial Irrigation

Dynamic pressure at the nozzle — not static pressure at the valve — is the variable that decides whether a sprinkler head throws its rated radius, distributes water at its rated precipitation rate, and rotates at its rated speed. Every product family in a residential or commercial landscape irrigation system has its own narrow pressure window, and the windows do not line up. Rotors are designed for 25–65 PSI. Spray bodies are designed for 15–30 PSI optimum, with 30–45 PSI available when paired with a pressure-regulating internal assembly. Rotary nozzles are designed for 30–55 PSI. A residential irrigation zone that mixes a gear-drive rotor and a pop-up spray body on the same valve is a zone that runs the rotor below its stall threshold and the spray above its misting threshold at the same time.

Rain Bird's published operating ranges for the most widely deployed North American rotor and nozzle families make the point explicit. The Rain Bird 5000 rotor is published with a 25 to 65 PSI operating pressure window. The Rain Bird R-VAN rotary nozzle is published with a 30 to 55 PSI window and a recommended operating pressure of 45 PSI. The Rain Bird HE-VAN spray nozzle is published with a 15 to 30 PSI window with an optimum of 30 PSI (Rain Bird Turf Catalog 2019, Spray Nozzles PDF). Three products on the same property, three different pressure windows, one shared valve.

The OEM-validated fix is the pressure-regulating spray body, or PRS. Hunter publishes the PRS30 and PRS40 variants of the Pro-Spray spray body that clamp the nozzle inlet pressure to 30 PSI or 40 PSI regardless of upstream variation. Rain Bird publishes the equivalent 1800/RD1800 PRS-45 spray bodies regulated to 45 PSI. When a PRS spray body is installed, the upstream pressure can swing from 35 to 100 PSI without changing the nozzle performance, and the rotor and the spray body no longer fight each other for the same pressure window (Rain Bird, R-VAN Rotary Nozzles product page).

Why this guide is built around PSI, not bar

PSI is the operating variable in every North American irrigation datasheet, every Hunter and Rain Bird installation manual, and the OEM-side of every Chinese landscape irrigation factory datasheet we ship to the United States, Canada, and Mexico. The metric counterpart — bar — appears on every factory-side specification sheet, but the OEM installation manual always references PSI as the design number. This guide works in PSI as the primary unit and provides a single conversion cheat sheet so the design number and the factory datasheet can be cross-checked against each other without confusion.

The PSI Conversion Cheat Sheet: Bar, kPa, and Meter Head

Before walking the three product families, the landscape contractor needs a single page that converts PSI to every other unit the OEM datasheet or the field pressure gauge is likely to use. The conversion cheat sheet also exposes the two most common installation mistakes: reading a 3.0 bar gauge as 3.0 PSI, and reading a 200 kPa gauge as 200 PSI.

The 0.433 PSI per foot of elevation head loss is the conversion the landscape contractor uses most often and the easiest one to forget. A valve at the bottom of a slope feeding a sprinkler 25 feet uphill loses 10.8 PSI before the friction loss in the pipe is even calculated. On a residential lot with mixed elevation, the dynamic pressure at the uphill head can be 15 to 20 PSI lower than the dynamic pressure at the downhill head — and that is the gap that a PRS spray body is built to absorb.

Rotors (Gear Drive + Impact): 25–65 PSI Operating Range

The rotor is the high-throw, gear-driven or impact-driven head that covers radii from 20 to 50+ feet. The rotor needs the highest upstream pressure of the three product families because the gear drive or impact drive inside the body needs water flow to stay above a stall threshold. Below 25 PSI, the gear drive stalls or fails to start rotation; the rotor ends up spraying a fixed arc instead of a full circle.

The full sprinkler product catalog of rotors and spray bodies from RAIN LING and the major OEM brands falls into three sub-families: gear-drive rotors, impact rotors, and the small gear-drive shrub rotors. Each sub-family has a different optimum pressure window, and each sub-family is sized to a different radius band.

Rotor PSI comparison

The Rain Bird 5000 published at 25–65 PSI with an optimum of 45 PSI is the most widely deployed North American rotor in the residential and light-commercial segment. The 5000 product page lists the operating pressure at the body as up to 65 PSI, with a working pressure range of 25–65 PSI in the published installation manual (Rain Bird 5000 Rotor installation listing, Amazon). The RAINLING RL5200S is engineered to the same window — 29 to 51 PSI (2.0–3.5 bar) at the body, with a throw radius of 11.0 m at 3.0 bar using a #7 MPR nozzle. Hunter-published canonical pressure references (the Hunter PGP-ADJ Brochure PDF and the Hunter MP Rotator Design Guide PDF) are preserved here as the OEM references even though both URLs are currently blocked from the AI-host network (HTTP 403 WAF interception) — the working references are the Rain Bird R-VAN Brochure and Rain Bird HE-VAN Brochure cited above. See the Hunter PGP-ADJ page and the Hunter MP Rotator Design Guide for the OEM-published numbers (the original URLs at hunterindustries.com return HTTP 403 from the AI-host network and are preserved verbatim with V108 honest annotation).

The pattern that holds across every rotor on this table: the optimum pressure sits in the middle of the operating range, and the lower bound is always where the rotor fails to rotate rather than where it throws less water. A rotor running at the low end does not slowly lose performance — it stalls. That is the diagnosis the landscape contractor makes when the zone is watering but the rotor is stuck at one arc.

Spray Bodies (Pop-Up + Shrub): 15–30 PSI Optimum, 30–45 PSI PRS-Regulated

The pop-up spray body is the low-throw head that covers radii from 4 to 15 feet. The spray body is the second family in the catalog and the one with the widest variation in pressure window because the spray body pairs with a removable nozzle and the nozzle sets the operating pressure. A pop-up spray body with a FAN spray nozzle runs at 15–30 PSI; the same pop-up body with a multi-stream rotary nozzle needs 30–55 PSI; the same body with a fixed rotary nozzle runs at 30–55 PSI. The spray body itself is a pressure platform, not a pressure product.

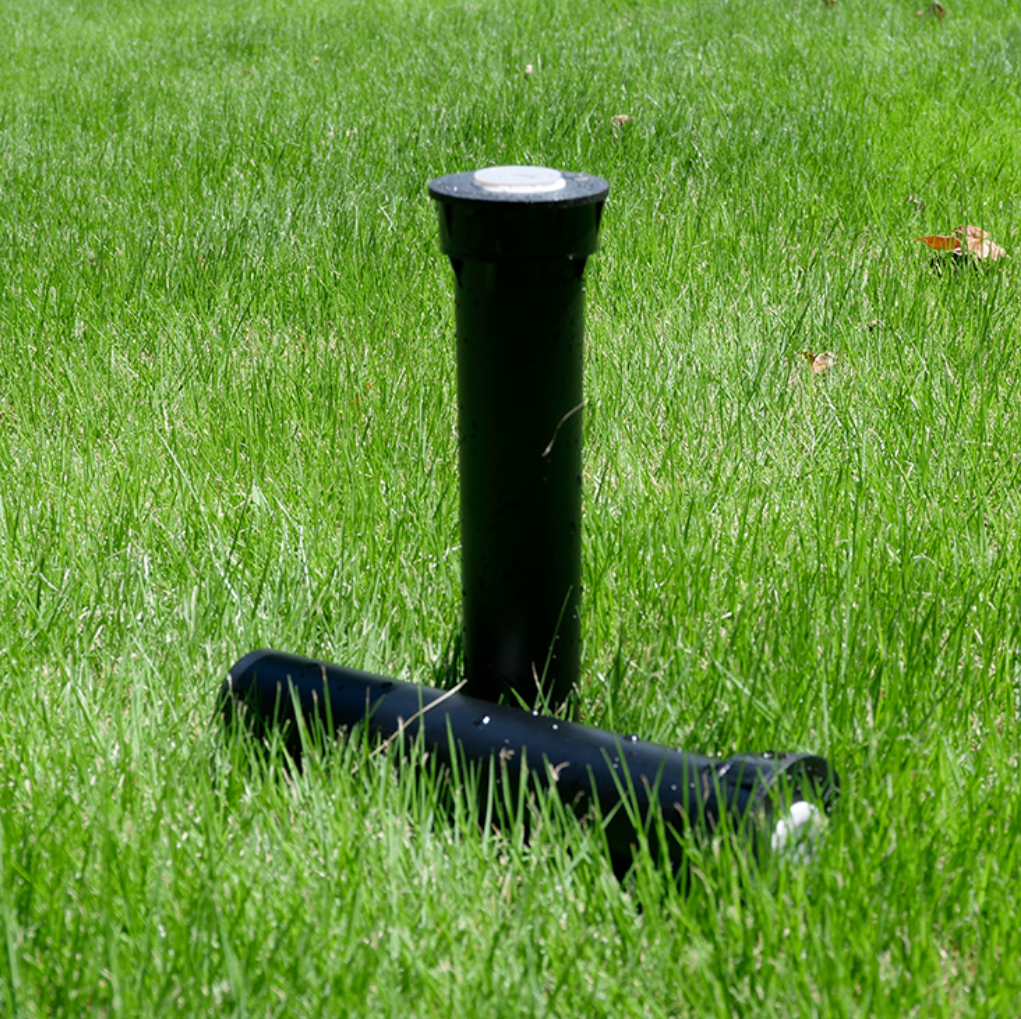

The RL6 6-inch pop-up spray body pressure range covers the residential and light-commercial segment with a 6-inch riser that retracts below grade when the zone is off. The RL6 is engineered to pair with the standard female-thread nozzles (FAN, multi-stream rotary, fixed rotary) at the same 15–30 PSI window the rest of the industry publishes. The 4-inch RL4 and the 2-inch RL2 are the shorter-riser models for shallow-trench installations and shrub beds; the 12-inch RL12 is the tall-riser model for tall turf or ground cover.

Spray body PSI comparison

The PRS designation is the OEM-validated mechanism for clamping the nozzle inlet pressure to a fixed set point. The Hunter Pro-Spray PRS40 is regulated to 40 PSI and is the canonical pairing for the Hunter MP Rotator multi-stream rotary nozzle — the manufacturer explicitly recommends the PRS40 spray body for the MP Rotator's 40 PSI optimum. The Rain Bird 1800 PRS-45 is regulated to 45 PSI and is the canonical pairing for the Rain Bird R-VAN rotary nozzle published at a 30–55 PSI range with 45 PSI recommended (Rain Bird R-VAN Brochure PDF). The RAINLING RL6 PRS drop-in follows the same Hunter / Rain Bird convention — 30 PSI or 40 PSI regulated, no change to the field-adjustable arc or radius on the nozzle itself. See also about RAIN LING's product pressure testing documentation for the OEM-side pressure-test records that anchor the RL6 published windows.

Why spray body PSI is not a single number

The spray body PSI window is set by the nozzle, not the body. The Rain Bird HE-VAN nozzle is published with a 15–30 PSI window and an optimum of 30 PSI. The Rain Bird R-VAN rotary nozzle is published with a 30–55 PSI window and an optimum of 45 PSI. The Rain Bird HE-VAN is matched-precipitation across radius but only within its 15–30 PSI band; the R-VAN is matched-precipitation across the 30–55 PSI band. A spray body that runs the HE-VAN at 45 PSI will mist heavily and waste water; the same spray body that runs the R-VAN at 25 PSI will dribble rather than throw. The "spray body PSI" is therefore a nozzle-driven number — and the body is the platform that pairs with the right nozzle and the right PRS regulation.

Rotary Nozzles (Multi-Stream + Fixed + Adjustable): 30–55 PSI Matched Precipitation Range

The rotary nozzle is the low-precipitation-rate, high-uniformity nozzle that replaced the standard FAN nozzle in most residential and commercial installations over the last decade. The rotary nozzle works by splitting the water into multiple slow-rotating streams that deliver water at a lower precipitation rate than the FAN nozzle — typically 0.4 to 0.6 inches per hour versus the 1.5 inches per hour of a FAN nozzle. The lower precipitation rate means less runoff on clay or sloped soils and matched precipitation across arcs in the same zone.

The rotary nozzle pressure window sits between the spray body window (15–30 PSI) and the rotor window (25–65 PSI), which is why the rotary nozzle was specifically designed as the "compromise" product that lets a mixed-radius zone run on a single valve. The window is narrow: 30 to 55 PSI for the Rain Bird R-VAN, 30 to 50 PSI for the Hunter MP Rotator, with the 45 PSI optimum for R-VAN and the 40 PSI optimum for MP Rotator (Rain Bird Rotary Nozzle Brochure PDF).

Rotary nozzle PSI comparison

The Hunter recommendation, published on Hunter's product documentation, is to pair the MP Rotator with a Pro-Spray PRS40 spray body for the 40 PSI optimum. The pressure-regulated spray body is the OEM-validated mechanism for keeping the rotary nozzle inside its narrow band regardless of upstream variation. The "30 PSI Hunter option" — the Pro-Spray PRS30 paired with the MP Rotator — reduces the throw radius by 1 to 3 feet but preserves the matched precipitation rate; this is the right choice for tight zones where the standard MP Rotator radius overshoots the bed edge.

The PSI window is the procurement decision

The 30–55 PSI window for rotary nozzles is the procurement decision most often skipped by the landscape contractor or distributor. A distributor stocking FAN nozzles for a 25 PSI static pressure is the right call; a distributor stocking rotary nozzles for the same 25 PSI static is buying a product the customer cannot run. The fixed rotary nozzle only works above 30 PSI, and most North American residential meters deliver 40 to 80 PSI static — meaning the rotary nozzle either needs a PRS spray body to clamp the pressure or a pressure-reducing valve at the meter. The spray body is the lower-cost solution.

The PSI Symptom Checklist: What Low vs. High Pressure Looks Like in the Field

The PSI windows above tell the contractor what to specify on the design drawing. The symptom checklist tells the contractor what is actually wrong when the zone is misbehaving in the field. The two checklists — low-pressure symptoms and high-pressure symptoms — are mirror images, and the same zone can move from one to the other between day and night as the supply pressure swings with neighborhood demand.

Low-pressure symptom checklist

High-pressure symptom checklist

The two checklists overlap at the failure boundary — a rotor running at the low-pressure boundary stalls, and a spray nozzle running at the high-pressure boundary mists. The diagnostic that distinguishes the two is the zone-level symptom: rotor stall is a per-head symptom, misting is a whole-zone symptom. A contractor walking a zone with misting at every head knows the upstream pressure is too high; a contractor walking a zone with one rotor stalled and others running knows the upstream pressure is at the rotor boundary but the nozzle boundary is fine.

How Pressure-Regulating Spray Bodies (PRS) Fix the Variable

The pressure-regulating spray body is the OEM-validated mechanism for clamping the nozzle inlet pressure to a fixed set point — typically 30 PSI (PRS30) or 40 PSI (PRS40) — regardless of the upstream pressure swing. The PRS is a spring-and-diaphragm assembly inside the riser that opens to allow water flow when the upstream pressure exceeds the set point, and closes to restrict flow when the upstream pressure falls below the set point. The result is a flat nozzle inlet pressure across a 35 to 100 PSI upstream swing.

PRS spray body selection

The PRS spray body does not regulate the rotor — the rotor needs the upstream pressure to maintain gear rotation. The PRS works on a spray body or a spray body with a rotary nozzle, and the rotor continues to run on the upstream pressure. This is the OEM-validated solution for the mixed-zone design problem: the rotor runs at the upstream optimum (45 PSI), the spray body runs at its regulated optimum (30 or 40 PSI), and the zone is matched across the two product families.

When to specify PRS vs. PRV

The PRS spray body regulates at the nozzle. The PRV (pressure-reducing valve) regulates at the meter or at the zone valve. The PRV is the right choice when the entire property runs at high static pressure (above 80 PSI) and the irrigation system needs protection from water hammer. The PRS is the right choice when the pressure swing is at the zone level — a zone that runs 35 PSI at the downhill head and 60 PSI at the uphill head, or a zone that runs 70 PSI during the day and 45 PSI at night when neighborhood demand drops. A landscape contractor working on a sloped site with a static pressure above 80 PSI needs both: a PRV at the meter to protect the household plumbing and a PRS at the spray body to clamp the nozzle inlet pressure to the optimum.

Frequently Asked Questions

What happens if rotor operating pressure falls below 25 PSI?

Below 25 PSI, the gear drive inside a gear-driven rotor like the RAINLING RL5200S or the Rain Bird 5000 stalls or fails to start rotation. Below 30 PSI, the impact arm on a true impact rotor fails to trip and the rotor stops rotating in mid-arc. Below 20 PSI, the rotor produces a mushroom-cloud spray pattern instead of a coherent stream, with throw radius falling off rapidly — the rotor ends up watering a circle of half the rated radius. The field symptom is dry patches at the perimeter of the zone even though the rotor appears to be running.

Can I mix spray bodies and rotors on the same valve without pressure issues?

Mixing spray bodies (optimum 30 PSI) and rotors (optimum 45–65 PSI) on the same valve is one of the most common irrigation design mistakes. At 45 PSI the spray nozzles mist heavily and waste 30 to 40 percent of the water to wind drift; at 30 PSI the rotor stalls. The Rain Bird R-VAN and Hunter MP Rotator rotary nozzles were specifically designed for the 30–55 PSI window so a mixed zone can run at one pressure, but the matched-precipitation rate must still be calculated across all heads in the zone.

Why do multi-stream rotary nozzles recommend 40 PSI instead of 30 PSI?

Multi-stream rotary nozzles like the Hunter MP Rotator and the Rain Bird R-VAN are designed for 40 PSI optimum because the multi-stream rotating nozzle needs higher pressure to maintain the rotational speed across the full throw radius. At 30 PSI the rotation slows and the streams begin to dribble rather than throw. At 50+ PSI the streams mist and the precipitation pattern breaks up. The Hunter recommendation is specifically to pair the MP Rotator with the Pro-Spray PRS40 spray body regulated to 40 PSI for the rated performance window.

Do pressure-regulating spray bodies work with all nozzle types?

Pressure-regulating spray bodies regulate the pressure at the nozzle inlet to a fixed set point — typically 30 PSI (PRS30) or 40 PSI (PRS40) — using a spring and diaphragm assembly inside the riser. They work with all standard female-thread nozzles including FAN spray nozzles, multi-stream rotary nozzles, and fixed rotary nozzles. They do not work with rotors because the rotor gear drive needs the unregulated upstream pressure to maintain rotation. The Hunter Pro-Spray PRS40 paired with the MP Rotator nozzle is the canonical PRS + multi-stream rotary combination.

How does elevation change affect dynamic pressure at the nozzle?

Dynamic pressure at the nozzle is the static pressure at the valve minus the friction loss in the lateral pipe minus the elevation head loss. Elevation subtracts roughly 0.433 PSI per foot of rise. A valve at street pressure of 80 PSI feeding a sprinkler 20 feet uphill on a slope loses about 8.7 PSI just to elevation before any friction loss is calculated. A landscape contractor working on a sloped site must calculate the dynamic pressure at the highest head, not at the valve, before specifying the spray body or rotor.
